Katup pengurang tekanan Katup Diafragma PVDF

Jenis pembayaran:L/C,D/P,T/T,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1

Transportasi:Ocean,Land,Air

$0.1-1 /

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Actuator: Manual

Connection: Flanged Diaphragm Valve

Material: PVDF

Structure: Weir Diaphragm Valve

Tekanan: PN 1.0Mpa

Flow Direction: Bidirectional

Penggunaan: Flow Control

Standar: DIN

Aplikasi: Industri Kimia

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,D/P,T/T,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

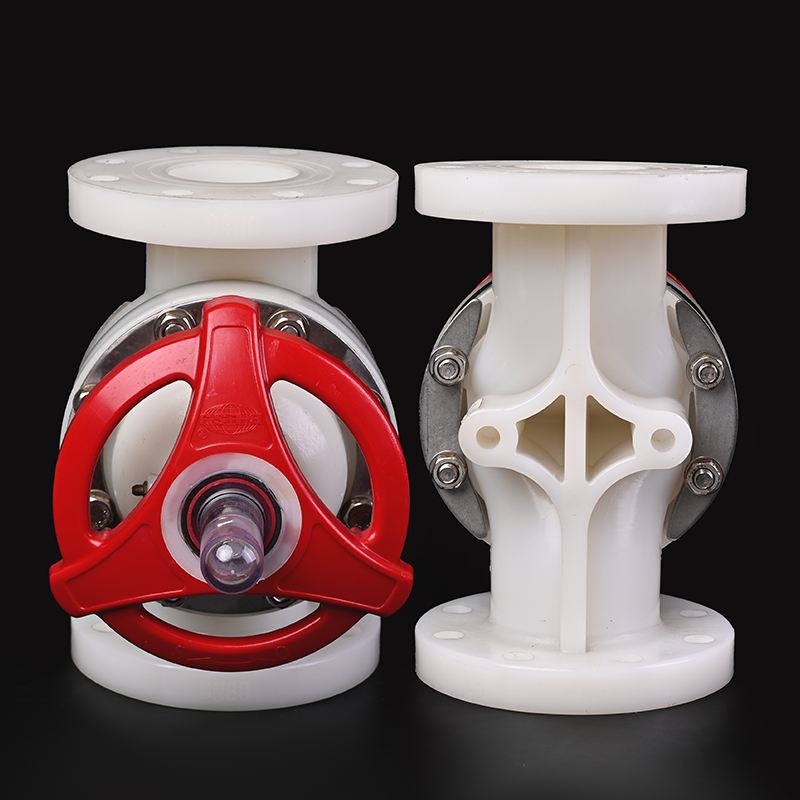

Katup Diafragma PVDF adalah solusi andal untuk kontrol cairan di lingkungan korosif. Ketika diintegrasikan sebagai Katup Pengurang Tekanan Diafragma, ini memastikan pengaturan tekanan yang tepat dengan ketahanan kimia yang sangat baik. Terbuat dari PVDF dengan kemurnian tinggi, katup ini menawarkan daya tahan, perawatan rendah, dan pengoperasian yang aman dalam aplikasi yang melibatkan asam, basa, dan pelarut. Ideal untuk industri farmasi, kimia, dan pengolahan air, produk ini menggabungkan kinerja, umur panjang, dan kepatuhan terhadap standar kebersihan yang ketat.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	PVDF Diaphragm Valve Flange ANSI CL150
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PVDF
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Cream
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Sebagai produsen Katup Diafragma PVDF terkemuka di Tiongkok, kami mengkhususkan diri dalam merekayasa solusi kontrol fluida canggih untuk lingkungan paling menantang di dunia. Seri Katup Diafragma Tahan Korosi kami dirancang khusus untuk menangani bahan kimia agresif dan media dengan kemurnian tinggi dengan keandalan yang tak tertandingi.

PVDF Flanged Diaphragm Valves Parts&Material
No.	Parts	Materials
1	gauge cover	PC
2	stud nut	steel,stainless steel
3	Hand wheel	ABS,FRPP
4	Bonnet	PVDF
5	sleeve	cast iron,copper alloy
6	Board	Plastc-coated steel,stainless steel
7	Stud Bolt &Nut	steel,stainless steel
8	Stem	steel,stainless steel,copperalloy
9	Body	PVDF
10	compressor	PVDF,CPVC,，cast iron
11	Cushion	EPDM
12	Diaphragm	EPDM,FPM,FEP,PFA,PTFE
13	Grease Nipple	copperalloy,stainless steel DN80-300 used only

PVDF DIN Flanged Diaphragm Valves Dimensions Table
DN	D1(mm)	D(mm)	L(mm)	h(mm)	n	φ(mm)
DN	HG/DIN	HG/DIN	HG/DIN		HG/DIN	HG/DIN
15	95	65	125	14	4	14
20	105	75	135	16	4	14
25	115	85	145/160	16	4	14
32	135	100	160/180	16	4	18
40	145	110	180	16	4	18
50	160	125	210/230	18	4	18
65	180	145	250	22	4	18
80	195	160	300	25	8	18
100	215	180	350	25	8	18
125	255	210	405	30	8	18
150	280	240	460	30	8	22
200	340	295	575	38	8	22
250	395	350	685	38	12	22
300	480	400	790	40	12	22

PVDF JIS Flanged Diaphragm Valves Dimensions Table
DN	D1(mm)	D(mm)	L(mm)	h(mm)	n	φ(mm)
DN	JIS	JIS	JIS	h(mm)	JIS	JIS
15	95	70	110	14	4	15
20	100	75	120	16	4	15
25	125	90	130	16	4	15
32	135	100	160	16	4	19
40	145	105	180	16	4	19
50	160	120	210	18	4	19
65	180	140	250	22	4	19
80	195	150	280	25	8	19
100	220	175	340	25	8	19
125	255	210	405	30	8	19
150	280	240	460/480	30	8	23
200	340	290	575	38	12*	23
250	395	355	685	38	12	25
300	480	400	790	40	16*	25

PVDF ANSI Flanged Diaphragm Valves Dimensions Table
DN	D1(mm)	D(mm)	L(mm)	h(mm)	n	φ(mm)
DN	ANSI	ANSI	ANSI	h(mm)	ANSI	ANSI
15	95	60	110	14	4	16
20	100	70	120	16	4	16
25	125	79	130	16	4	16
32	135	89	160	16	4	16
40	145	98	180	16	4	16
50	160	121	210	18	4	19
65	180	140	250	22	4	19
80	195	152	280	25	4*	19
100	220	190	340	25	8	19
125	255	216	405	30	8	22
150	280	241	460/480	30	8	22
200	340	298	575	38	8	22
250	395	362	685	38	12	26
300	480	432	790	40	12	26
