Katup Periksa PPH Tipe Wafer DN40-DN300

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1 Piece/Pieces

Transportasi:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Model No: RPV146

Pressure: Low Pressure

Standar: Standard

Aplikasi: Industrial Usage

Material: PP, PPH

Warranty Period: 3 Years

Place Of Origin: China

Medium Temperature: Normal Temperature

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

Menjual unit:

Piece/Pieces

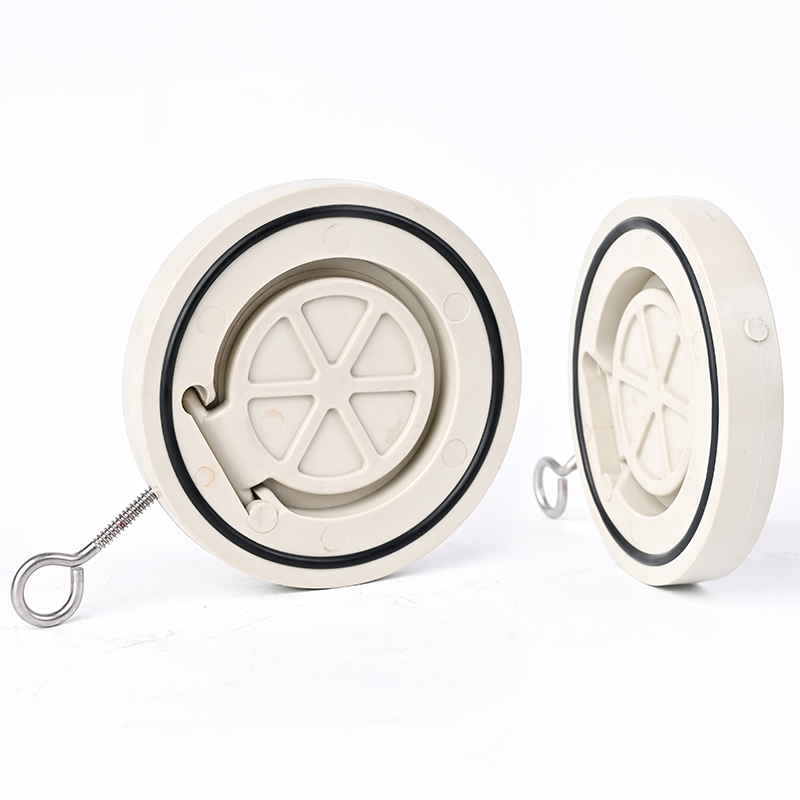

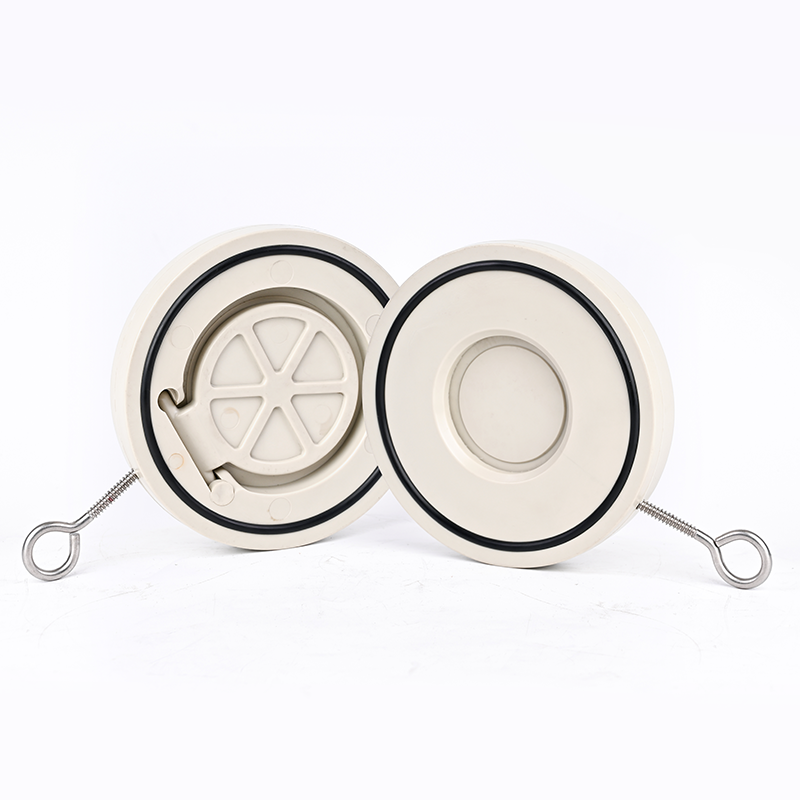

Tipe Wafer Katup Periksa PPH ini (juga disebut Wafer Katup Periksa Ayun dan Tipe Wafer Katup Periksa Ayun) adalah solusi non-return industri kompak, juga tersedia sebagai varian Katup Periksa Wafer Bergelang. Dibuat dari PPH bermutu tinggi, ia menawarkan ketahanan kimia dan suhu yang unggul, dengan mekanisme ayunan yang mulus untuk aliran satu arah yang andal dan penyegelan yang rapat. Desain wafernya memungkinkan pemasangan flensa yang menghemat ruang, ideal untuk transfer bahan kimia bertekanan rendah-menengah, pengolahan air, dan sistem penanganan cairan industri.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	PPH Check Valve Wafer Type DN40-DN300
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PPH
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Grey
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Tipe Wafer Katup Periksa PPH kami adalah pilihan kompak non-return untuk sistem korosif industri! PPH premium memberikan ketahanan kimia dan suhu yang luar biasa, dengan desain wafer hemat ruang untuk kemudahan pemasangan flensa. Mekanisme ayunan yang mulus memastikan aliran satu arah yang rapat, penyegelan anti bocor—tahan lama, perawatan rendah, sempurna untuk transfer bahan kimia dan pengolahan air.

PPH Wafer Check Valve Parts&Material
No.	Parts	Materials
1	rings	stainless steel
2	Screw	PPH
3	Body	PPH
4	Disc	PPH
5	InnerO-ring	EPDM,FPM
6	Outside O-ring	EPDM,FPM

PPH Wafer Check Valve Dimensions Table
DN	d	D1	P	L	(Mpa) working pressure	(Mpa) Minimum back pressure
DN40	23	82	36	18	1.0	0.05
DN50	27	108	44	21	1.0	0.05
DN65	40	127	58	22	1.0	0.05
DN80	54	142	70	23	1.0	0.05
DN100	70	165	89	25	1.0	0.05
DN125	92	192	115	28	1.0	0.05
DN150	112	217	131	30	1.0	0.05
DN200	150	270	179	34	0.6	0.05
DN250	190	328	230	39	0.6	0.05
DN300	216	378	260	44	0.6	0.05
