Solusi Kaca Inspeksi Flange UPVC

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1 Piece/Pieces

Transportasi:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Masa Garansi: 3 tahun

Mendukung Kustomisasi: OEM

Tempat Asal: Cina

Sertifikasi: SGS

Standar: DIN, ANSI, JIS

Body: Borosilicate Glass

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

Menjual unit:

Piece/Pieces

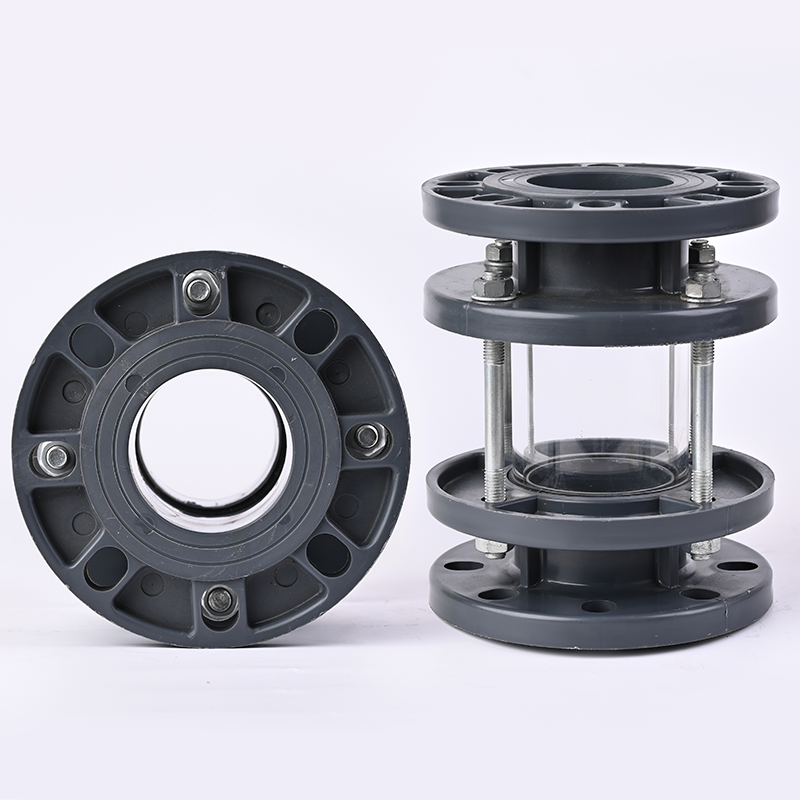

Kaca Inspeksi Flange UPVC ini adalah perlengkapan industri khusus yang dirancang untuk pemeriksaan kaca presisi dan pemeriksaan kualitas kaca profesional, berfungsi sebagai kaca inspeksi yang andal untuk sistem pipa fluida. Dibuat dengan flensa UPVC bermutu tinggi dan kaca transparan anti pecah, perangkat ini memungkinkan pemantauan visual real-time terhadap aliran fluida internal, serpihan, dan kondisi media tanpa pembongkaran pipa. Sambungan flensa yang kokoh memastikan penyegelan anti bocor, tahan terhadap bahan kimia ringan dan korosi air, mudah dipasang untuk pasokan air, perpipaan industri bertekanan rendah, dan pengaturan pengolahan cairan.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	UPVC Flange Inspection Glass Solution
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PVC(PVC-U)
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Grey
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Kaca Inspeksi Flange UPVC kami adalah kaca inspeksi pilihan untuk saluran pipa fluida! Memungkinkan pemeriksaan kaca yang presisi dan pemeriksaan kualitas kaca dengan kaca transparan anti pecah untuk pemantauan aliran waktu nyata. Flensa UPVC bermutu tinggi untuk penyegelan anti bocor dan ketahanan terhadap bahan kimia, mudah dipasang—ideal untuk pasokan air dan sistem perpipaan bertekanan rendah industri.

UPVC Inspection Glass Parts&Material
No.	Parts	Materials
l	Inspection glass flange	UPVC
2	Tube sealing	EPDM,FPM,PTFE
3	Glass	Glass
4	Stud Bolt	Steel,Stainless Steel
5	Nut	Steel,Stainless Steel

UPVC DIN Inspection Glass Dimensions Table (mm)
DN	D1	D	L	h	n	φ	(Mpa) working pressure
DN	D1	DIN	L	h	HG/DIN	HG/DIN	(Mpa) working pressure
25	115	85	235	16	4	14	0.6
32	135	100	235	16	4	18	0.6
40	145	110	235	16	4	18	0.6
50	160	125	235	16	4	18	0.6
65	180	145	235	18	4	18	0.6
80	195	160	235	18	8	18	0.6
100	215	180	235	20	8	18	0.6
125	245	210	315	20	8	18	0.3
150	280	240	370	20	8	22	0.3
200	340	295	385	25	8	22	0.3
250	405	350	420	28	12	22	0.3

UPVC JIS Inspection Glass Dimensions Table (mm)
DN	D1	D	L	h	n	φ	(Mpa) working pressure
DN	D1	JIS	L	h	JIS	JIS	(Mpa) working pressure
25	115	90	235	16	4	15	0.6
32	135	100	235	16	4	19	0.6
40	145	105	235	16	4	19	0.6
50	160	120	235	16	4	19	0.6
65	180	140	235	18	4	19	0.6
80	195	150	235	18	8	19	0.6
100	215	175	235	20	8	19	0.6
125	245	210	315	20	8	19	0.3
150	280	240	370	20	8	23	0.3
200	340	290	385	25	12*	23	0.3
250	405	355	420	28	12	25	0.3

UPVC ANSI Inspection Glass Dimensions Table (mm)
DN	D1	D	L	h	n	φ	(Mpa) working pressure
DN	D1	ANSI	L	h	ANSI	ANSI	(Mpa) working pressure
25	115	79	235	16	4	16	0.6
32	135	89	235	16	4	16	0.6
40	145	98	235	16	4	16	0.6
50	160	121	235	16	4	19	0.6
65	180	140	235	18	4	19	0.6
80	195	152	235	18	4*	19	0.6
100	215	190	235	20	8	19	0.6
125	245	216	315	20	8	22	0.3
150	280	241	370	20	8	22	0.3
200	340	298	385	25	8	22	0.3
250	405	362	420	28	12	26	0.3
