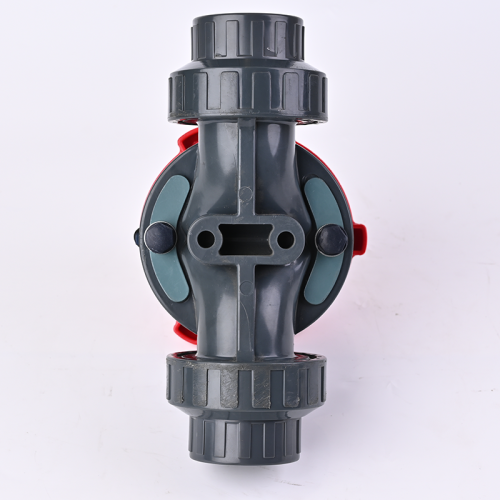

Katup Diafragma PVC

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1 Piece/Pieces

Transportasi:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Actuator: Manual

Koneksi: Katup Diafragma

Bahan: UPVC

Tekanan: PN 1.0Mpa

Flow Direction: Bidirectional

Penggunaan: Flow Control

Standar: DIN

Aplikasi: Industri Kimia

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

Menjual unit:

Piece/Pieces

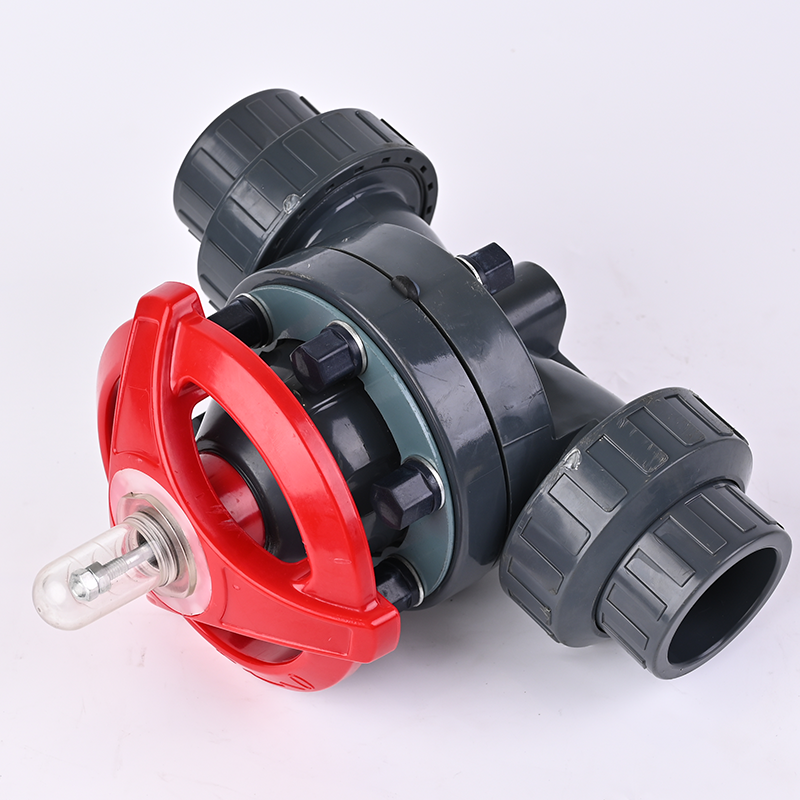

Katup Diafragma PVC kami menawarkan solusi kontrol aliran serbaguna, tersedia dalam bentuk Katup Diafragma Manual yang presisi untuk pengaturan yang dioperasikan dengan tangan, Katup Periksa Diafragma pencegah aliran balik, dan Katup Diafragma Weir dengan segel tinggi untuk keperluan industri. Dibuat dari PVC tahan korosi premium, semua varian memiliki penyegelan anti bocor yang rapat, pengoperasian yang lancar, dan perawatan yang mudah. Ringan dan mudah dipasang, ideal untuk pengolahan air, irigasi, takaran bahan kimia, dan sistem transfer cairan bertekanan rendah.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	PVC-U 90 degree elbow Pipe joints fittings
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PVC(PVC-U)
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Grey
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Ketika aplikasi Anda menuntut kemurnian tinggi dan tidak ada kebocoran, Katup Diafragma UPVC kami adalah solusi terbaik. Direkayasa dengan desain katup diafragma tipe bendungan UPVC khusus, katup ini memastikan kontrol aliran yang lancar sekaligus menjaga mekanisme pengoperasian sepenuhnya terisolasi dari media. Hal ini menjadikannya pilihan ideal untuk lingkungan sensitif, seperti katup diafragma UPVC untuk sistem air ultra murni dan pemrosesan semikonduktor.

pvc-true-union-diaphragm-valve-industrial-sta

UPVC True Union Parts&Material
No.	Parts	Materials
1	gauge cover	PC
2	stud nut	steel,stainless steel
3	hand wheel	ABS,FRPP
4	Bonnet	UPVC
5	sleeve	cast iron,copper alloy
6	Board	Plastc-coated steel,stainless steel
7	Stud Bolt &Nut	steel&plastic nuts,stainless steel
8	Union Nut	UPVC
6	Body	UPVC
10	O-Ring	EPDM,FPM
11	Endconnector	UPVC
12	Stem	steel,stainless steel,copper alloy
13	compressor	PVDF,CPVC，cast iron
14	Cushion	EPDM
15	Diaphragm	EPDM,FPM,FEP,PFA,PTFE

UPVC DIN True Union Dimensions Table
DN	L1	d		Z	L
		socket end	Thread end
		HG/DIN	HG/DIN
15	110	20	Rcl/2	17	155
20	110	25	Rc3/4	24	165
25	110	32	Rc1	28	173
32	175	40	Rc1-1/4	29	248
40	175	50	Rc1-1/2	35	257
50	200	63	Rc2	39	292
DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material

UPVC JIS True Union Dimensions Table
DN	L1	d		Z	L
		socket end	Thread end
		JIS	JIS
15	110	22	PT1/2	17	155
20	110	26	PT3/4	24	165
25	110	32	PT1	28	173
32	175	38	PT1-1/4	29	248
40	175	48	PT1-1/2	35	257
50	200	60	PT2	39	292
DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material

UPVC ANSI True Union Dimensions Table
DN	L1	d		Z	L
		socket end	Thread end
		ANSI	ANSI
15	110	21.3	NPT1/2	17	155
20	110	26.7	NPT3/4	24	165
25	110	33.4	NPT1	28	173
32	175	42.2	NPT1-1/4	29	248
40	175	48.3	NPT1-1/2	35	257
50	200	60.3	NPT2	39	292
DN65-DN125 true union diaphragm valves are manual products,please consult the sales consultant for details The dimension table is calculably based on UPVC material
