Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1 Piece/Pieces
Transportasi:Ocean,Land,Air
$0.1-1 /Piece/Pieces
Merek: HY atau OEM
Layanan Garansi: 3 tahun
Tempat Asal: Cina
Pressure: Low Pressure
Standar: DIN
Aplikasi: Penggunaan Industri
Structure: Ball
Bahan: UPVC
Types Of: Plastic Check Valves
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

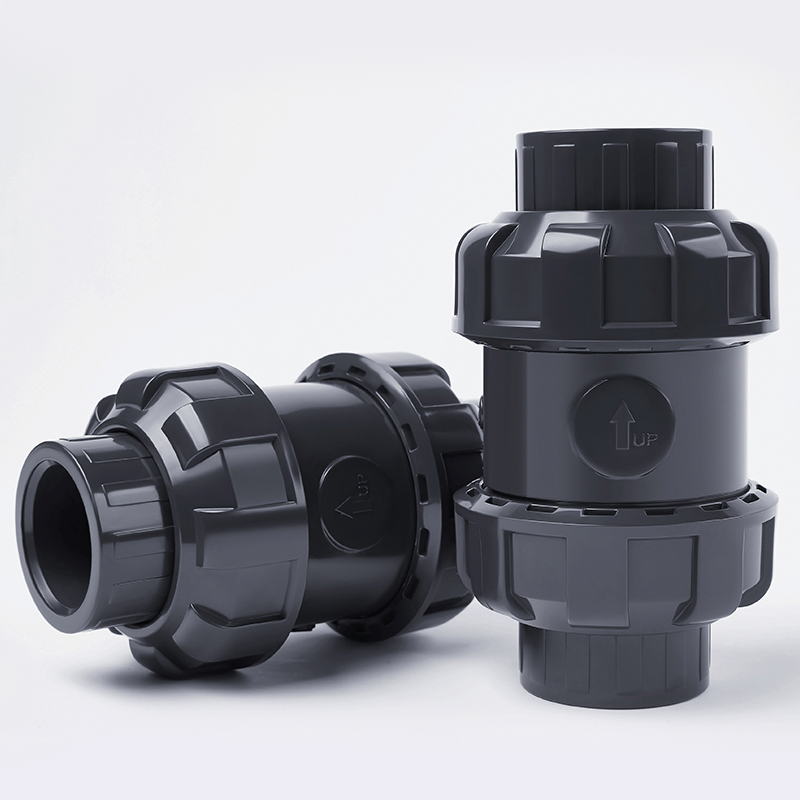

| Key Word: | Double Union Ball Check Valve for UPVC Systems | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
| UPVC Ball Check Valve-Union Type Parts&Material | ||
| No. | Parts | Materials |
| 1 | Joints | UPVC |
| 2 | Union nut | UPVC |
| 3 | O-ring | EPDM,FPM |
| 4 | Body | UPVC |
| 5 | Ball | UPVC |
| 6 | Inside plug | UPVC |
| 7 | Gasket | UPVC |
| UPVC DIN Ball Check Valve-Union Type Dimensions Table | ||||||
| DN | d | d | L | P | (Mpa) working pressure |
(Mpa) Minimum back pressure |
| socket end | Thread end | |||||
| HG/DIN | HG/DIN | |||||
| 15 | 20 | Rc1/2 | 100 | 17 | 1.0 | 0.04 |
| 20 | 25 | Rc3/4 | 120 | 24 | 1.0 | 0.04 |
| 25 | 32 | Rcl | 130 | 28 | 1.0 | 0.04 |
| 32 | 40 | Rc1-1/4 | 153 | 29 | 1.0 | 0.04 |
| 40 | 50 | Rc1-1/2 | 181 | 35 | 1.0 | 0.04 |
| 50 | 63 | Rc2 | 203 | 39 | 1.0 | 0.04 |
| UPVC JIS Ball Check Valve-Union Type Dimensions Table | ||||||
| DN | d | d | L | P | (Mpa) working pressure |
(Mpa) Minimum back pressure |
| socket end | Thread end | |||||
| JIS | JIS | |||||
| 15 | 22 | PT1/2 | 100 | 17 | 1.0 | 0.04 |
| 20 | 26 | PT3/4 | 120 | 24 | 1.0 | 0.04 |
| 25 | 32 | PT1 | 130 | 28 | 1.0 | 0.04 |
| 32 | 38 | PT1-1/4 | 153 | 29 | 1.0 | 0.04 |
| 40 | 48 | PT1-1/2 | 181 | 35 | 1.0 | 0.04 |
| 50 | 60 | PT2 | 203 | 39 | 1.0 | 0.04 |
| UPVC ANSI Ball Check Valve-Union Type Dimensions Table | ||||||
| DN | d | d | L | P | (Mpa) working pressure |
(Mpa) Minimum back pressure |
| socket end | Thread end | |||||
| ANSI | ANSI | |||||
| 15 | 21.3 | NPT1/2 | 100 | 17 | 1.0 | 0.04 |
| 20 | 26.7 | NPT3/4 | 120 | 24 | 1.0 | 0.04 |
| 25 | 33.4 | NPT1 | 130 | 28 | 1.0 | 0.04 |
| 32 | 42.2 | NPT1-1/4 | 153 | 29 | 1.0 | 0.04 |
| 40 | 48.3 | NPT1-1/2 | 181 | 35 | 1.0 | 0.04 |
| 50 | 60.3 | NPT2 | 203 | 39 | 1.0 | 0.04 |
