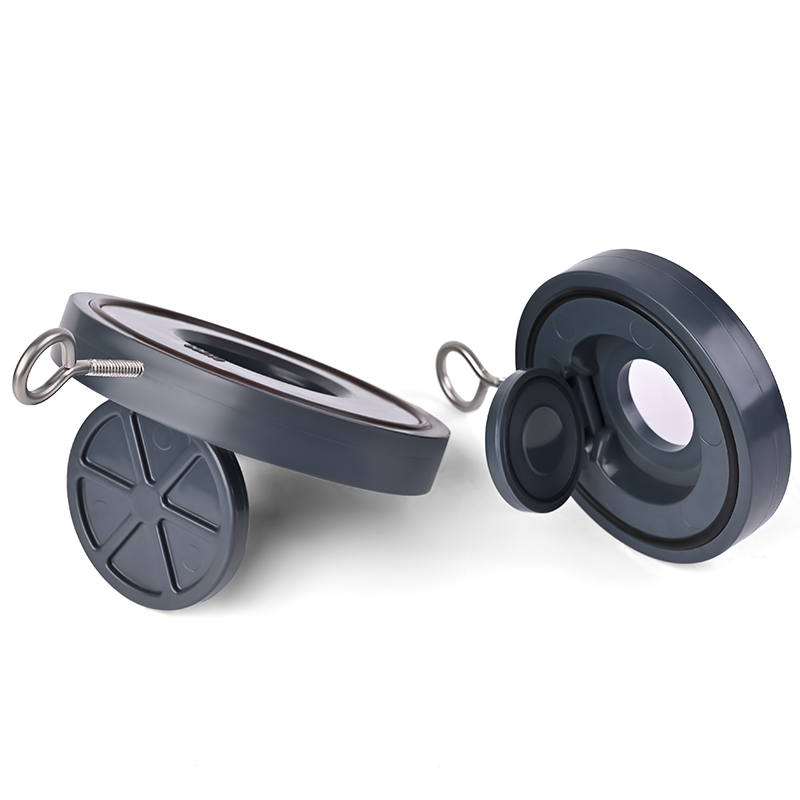

Katup Periksa Wafer PVC untuk Sistem Air

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1 Piece/Pieces

Transportasi:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Layanan Garansi: 3 tahun

Tempat Asal: Cina

Pressure: Low Pressure

Standar: Standard

Aplikasi: Penggunaan Industri

Bahan: UPVC

Medium Temperature: Normal Temperature

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

Menjual unit:

Piece/Pieces

Katup periksa wafer PVC, juga dikenal sebagai katup satu arah PVC 1/2" atau katup periksa PVC 2", memastikan aliran searah dalam sistem perpipaan. Ringkas dan ringan, mencegah aliran balik secara efisien sekaligus meminimalkan kehilangan tekanan. Ideal untuk pasokan air, irigasi, dan aplikasi industri, katup ini menawarkan kinerja yang andal, ketahanan terhadap korosi, dan pemasangan yang mudah. Tersedia dalam berbagai ukuran termasuk 1/2" dan 2", tahan lama, hemat biaya, dan banyak digunakan dalam sistem perpipaan perumahan dan komersial.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	UPVC Wafer Check Valve for Water Systems
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PVC(PVC-U)
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Grey
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	Normal Temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

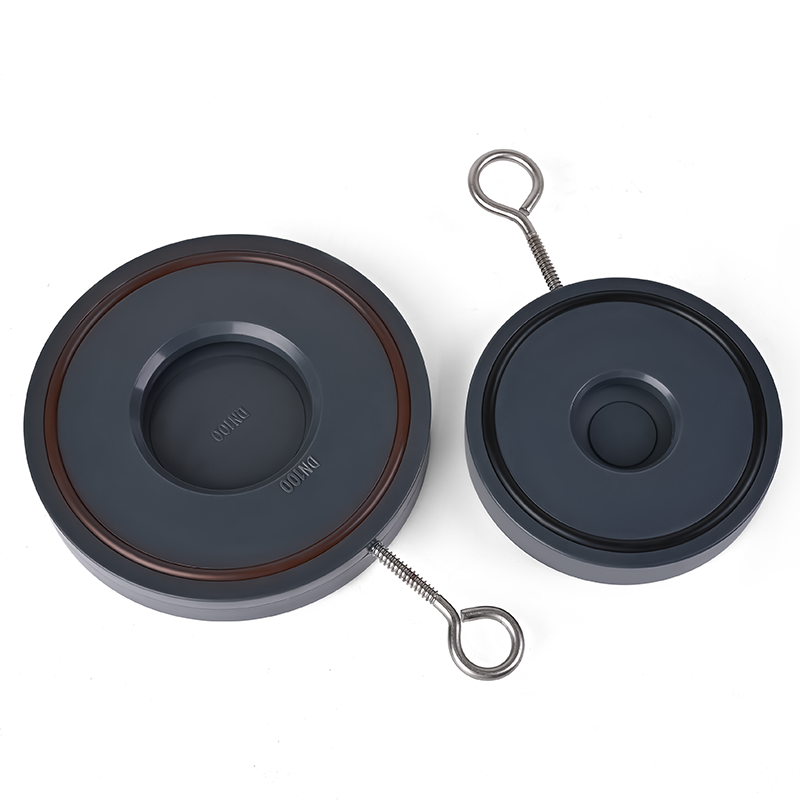

Sebagai Produsen Katup Periksa Wafer UPVC profesional, kami berspesialisasi dalam menyediakan solusi kontrol aliran berkinerja tinggi yang disesuaikan untuk lingkungan korosif. Katup Periksa Wafer UPVC DN100 andalan kami dirancang untuk presisi, menampilkan desain kompak dan hemat ruang yang memastikan pencegahan aliran balik yang andal dalam sistem perpipaan skala besar.

single-plate-wafer-check-valve-stainless-stee

UPVC Wafer Check Valve Parts&Material
No.	Parts	Materials
1	rings	stainless steel
2	Screw	UPVC
3	Body	UPVC
4	Disc	UPVC
5	InnerO-ring	EPDM,FPM
6	Outside O-ring	EPDM,FPM

UPVC Wafer Check Valve Dimensions Table
DN	d	D1	P	L	(Mpa) working pressure	(Mpa) Minimum back pressure
DN40	23	82	36	18	1.0	0.05
DN50	27	108	44	21	1.0	0.05
DN65	40	127	58	22	1.0	0.05
DN80	54	142	70	23	1.0	0.05
DN100	70	165	89	25	1.0	0.05
DN125	92	192	115	28	1.0	0.05
DN150	112	217	131	30	1.0	0.05
DN200	150	270	179	34	0.6	0.05
DN250	190	328	230	39	0.6	0.05
DN300	216	378	260	44	0.6	0.05
