Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1 Piece/Pieces
Transportasi:Ocean,Air
$0.1-1 /Piece/Pieces
Merek: HY atau OEM
Material: PVC
Baik: PIPA TERMOPLASTIK
Water Absorption: ＜0.01%
Contraction Percentage: 1.0%~2.5%
Kekuatan Tarik: （30 ~ 40） MPa
Warna: Abu -abu gelap
Pressure: 1.6Mpa
Layanan Garansi: 3 tahun
Tempat Asal: Cina
Temperature: -15 to 55 Degree Celsius
Transportasi: Ocean,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF

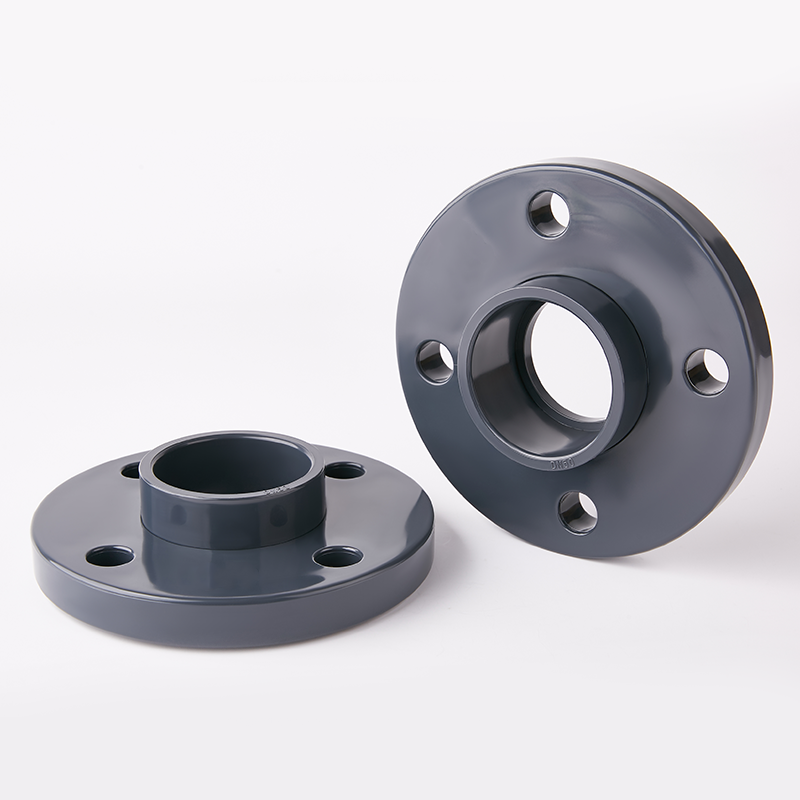

Flange Vanstone kami yang kuat, komponen inti flensa dan perlengkapan pvc dan kompatibel dengan sistem flensa slip pvc, dirancang untuk sambungan pipa tugas berat. Ini memastikan segel yang rapat dan anti bocor dalam jaringan cairan bertekanan tinggi, dengan struktur cetakan presisi yang tahan terhadap korosi dan kerusakan akibat tekanan. Memerlukan peralatan minimal untuk pemasangan, ini ideal untuk transfer cairan industri, pasokan air kota, dan proyek irigasi skala besar.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | High Quality Loose Flange for Industrial Use | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Dibuat khusus untuk kondisi ekstrem, Flange PVC Tekanan Tinggi 1,6 MPa kami memastikan sambungan anti bocor dan aman di bawah tekanan konstan. Selain itu, Flange Batu Van UPVC Tahan Kimia kami menawarkan daya tahan yang unggul terhadap cairan agresif, menjadikannya pilihan tepercaya untuk pemrosesan bahan kimia, pabrik pengolahan air, dan operasi penambangan di seluruh dunia.

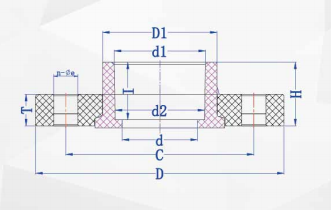

| PN16 PVC van stone flange dimensions chart (Unit: mm) | ||||||||||||
| SIZE | D | D1 | C1 | C2 | d | d1 | d2 | H | T | I | n-fe | |
| DN15 | 20mm PVC van stone flange | 95.0 | 30.6 | 60.0 | 70.0 | 15.0 | 20.3 | 20.0 | 26.0 | 14 | 22.0 | 4-15 |
| DN20 | 25mm PVC van stone flange | 105.0 | 36.0 | 70.0 | 75.0 | 20.0 | 25.3 | 25.0 | 29.5 | 15 | 23.4 | 4-15 |
| DN25 | 32mm PVC van stone flange | 125.0 | 43.8 | 80.0 | 90.0 | 25.0 | 32.3 | 32.0 | 32.2 | 16 | 28.7 | 4-15 |
| DN32 | 40mm PVC van stone flange | 140.0 | 52.6 | 90.0 | 100.0 | 32.0 | 40.4 | 40.0 | 38.5 | 16 | 32.0 | 4-19 |
| DN40 | 50mm PVC van stone flange | 150.0 | 60.7 | 99.0 | 110.0 | 43.0 | 50.4 | 50.0 | 40.5 | 18 | 35.0 | 4-19 |
| DN50 | 63mm PVC van stone flange | 165.0 | 74.8 | 120.0 | 125.0 | 55.0 | 63.4 | 63.0 | 45.0 | 20 | 38.2 | 4-19 |
| DN65 | 75mm PVC van stone flange | 185.0 | 89.6 | 140.0 | 145.0 | 65.0 | 75.5 | 75.0 | 51.0 | 24 | 45.0 | 4-19 |
| DN80 | 90mm PVC van stone flange | 200.0 | 106.5 | 150.0 | 160.0 | 80.0 | 90.5 | 90.0 | 55.0 | 26 | 48.0 | 8-19 |
| DN100 | 110mm PVC van stone flange | 228.0 | 133.0 | 175.0 | 191.0 | 100.0 | 110.5 | 110.1 | 64.0 | 29 | 57.5 | 8-19 |
| DN125 | 140mm PVC van stone flange | 254.0 | 160.1 | 210.0 | 216.0 | 125.0 | 140.6 | 140.1 | 81.5 | 28 | 66.8 | 8-22 |
| DN150 | 160mm PVC van stone flange | 284.0 | 187.1 | 240.0 | 242.0 | 154.0 | 160.6 | 160.1 | 86.7 | 32 | 76.0 | 8-23 |
| DN200 | 225mm PVC van stone flange | 343.0 | 247.1 | 295.0 | 299.0 | 200.0 | 225.8 | 225.1 | 130.0 | 35 | 117.0 | 8-23 |
| DN250 | 250mm PVC van stone flange | 406.0 | 305.0 | 355.0 | 362.0 | 240.0 | 250.8 | 250.1 | 159.0 | 42 | 131.0 | 12-25 |
| DN300 | 280mm PVC van stone flange | 406.0 | 305.0 | 355.0 | 362.0 | 250.0 | 281.5 | 280.1 | 159.0 | 42 | 144.5 | 12-25 |
| DN350 | 315mm PVC van stone flange | 483.0 | 344.6 | 410.0 | 432.0 | 307.0 | 317.0 | 315.1 | 190.0 | 52 | 172.0 | 12-25 |
| PVC van stone flange DIN Standard PN16 Packing Specifications | |||||
| Size | Carton Size (cm) | Qty/Ctn | Weight (g/pc) | Price/Piece ($) | |
| DN15 | 20mm PVC van stone flange | 46*38*27 | 210 | 89.4 | 0.33 |
| DN20 | 25mm PVC van stone flange | 46*38*27 | 120 | 121 | 0.47 |
| DN25 | 32mm PVC van stone flange | 46*38*27 | 96 | 151 | 0.6 |
| DN32 | 40mm PVC van stone flange | 46*38*27 | 84 | 247 | 1.01 |
| DN40 | 50mm PVC van stone flange | 46*38*27 | 54 | 294 | 1.21 |
| DN50 | 63mm PVC van stone flange | 41*41*34 | 54 | 353 | 1.54 |
| DN65 | 75mm PVC van stone flange | 46*38*27 | 30 | 478 | 2.18 |
| DN80 | 90mm PVC van stone flange | 41*41*34 | 20 | 553 | 2.93 |
| DN100 | 110mm PVC van stone flange | 46*38*27 | 12 | 670 | 3.69 |
| DN125 | 140mm PVC van stone flange | 60*56*27 | 15 | 812 | 5.78 |
| DN150 | 160mm PVC van stone flange | 60*46*33 | 10 | 1078 | 8.03 |
| DN200 | 225mm PVC van stone flange | 52.5*38*37 | 4 | 1360 | 13 |
