Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1 Piece/Pieces
Transportasi:Ocean,Air
$0.1-1 /Piece/Pieces
Merek: HY atau OEM
Bahan: PVC, PVC
Baik: PIPA TERMOPLASTIK
Water Absorption: ＜0.01%
Contraction Percentage: 1.0%~2.5%
Kekuatan Tarik: （30 ~ 40） MPa
Pressure: 1.6Mpa
Warna: Abu -abu gelap
Processing Service: Moulding
Temperature: -15 to 55 Degree Celsius
Layanan Garansi: 3 tahun
Tempat Asal: Cina
Transportasi: Ocean,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF

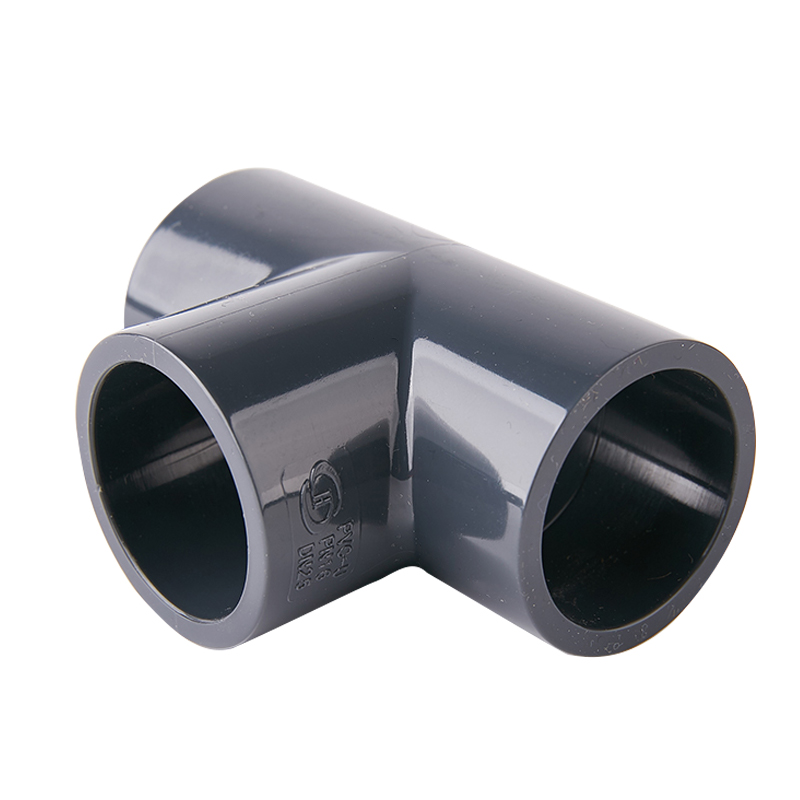

Kaos PVC ini terbuat dari bahan PVC baru, dibentuk utuh, dengan dinding yang menebal dan ketahanan yang kuat terhadap korosi asam dan alkali. Hal ini terutama diterapkan di bidang kimia dan industri. Konektor pvc t ini termasuk seri DIN, dengan ketahanan tekanan 1,6 MPa. Terhubung ke pipa PVC DIN di tiga ujungnya, dan spesifikasinya berkisar dari DN15 hingga DN300. Lem PVC diperlukan untuk menyambung tiga arah dan pipa. Selain itu, jenis tee PVC juga mencakup tee berulir dan tee pereduksi.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | PVC tee | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Dirancang untuk keandalan jangka panjang di lapangan, Tee PVC Tugas Berat untuk Irigasi kami memberikan ketahanan unggul terhadap sinar UV dan tekanan lingkungan, menjadikannya pilihan sempurna untuk sistem pertanian skala besar bertekanan tinggi. Untuk spesifikasi teknis terperinci dan untuk memastikan kesesuaian sempurna dengan desain saluran pipa Anda, silakan lihat Bagan Dimensi Tee PVC PN16 komprehensif kami yang disediakan di bawah ini.
| PVC Tee DIN PN16 Packing Size, Weight,Price & CBM Chart | Full Specifications | |||||
| Size | Carton Size (cm) | Qty/Ctn | Weight (g/pc) | Price/Piece ($) | |
| DN15 | 20mm pvc tee | 52.5*38*37 | 800 | 24.9 | 0.09 |
| DN20 | 25mm pvc tee | 41*41*34 | 360 | 38 | 0.13 |
| DN25 | 32mm pvc tee | 55*43*35 | 300 | 67 | 0.22 |
| DN32 | 40mm pvc tee | 52.5*38*37 | 136 | 119.5 | 0.36 |
| DN40 | 50mm pvc tee | 52.5*38*37 | 96 | 185 | 0.56 |
| DN50 | 63mm pvc tee | 52.5*38*37 | 55 | 349 | 1.02 |
| DN65 | 75mm pvc tee | 52.5*38*37 | 32 | 532 | 1.62 |
| DN80 | 90mm pvc tee | 53.5*47.5*37 | 25 | 802 | 2.45 |
| DN100 | 110mm pvc tee | 52.5*38*37 | 12 | 1313 | 4.11 |
| DN125 | 140mm pvc tee | 50.5*46.5*47 | 9 | 2666 | 8.93 |
| DN150 | 160mm pvc tee | 55*43*35 | 4 | 3875 | 13.81 |
| DN200 | 225mm pvc tee | 53.5*47.5*37 | 2 | 7875 | 29.27 |
