Jenis pembayaran:T/T,L/C,D/P,Paypal,D/A
Inkoterm:CFR,CIF,FOB
Min. Memesan:1000 Piece/Pieces
Transportasi:Ocean,Air
$0.011-1 /Piece/Pieces
Merek: HY atau OEM
Material: PVC
Water Absorption: ＜0.01%
Baik: PIPA TERMOPLASTIK
Kekuatan Tarik: （30 ~ 40） MPa
Warna: Abu -abu gelap
Pressure: 1.6Mpa
Contraction: 1.0%~2.5%
Standar: DIN
Layanan Garansi: 3 tahun
Tempat Asal: Cina
Temperature: -15 to 55 Degree Celsius
Transportasi: Ocean,Air
Jenis pembayaran: T/T,L/C,D/P,Paypal,D/A
Inkoterm: CFR,CIF,FOB

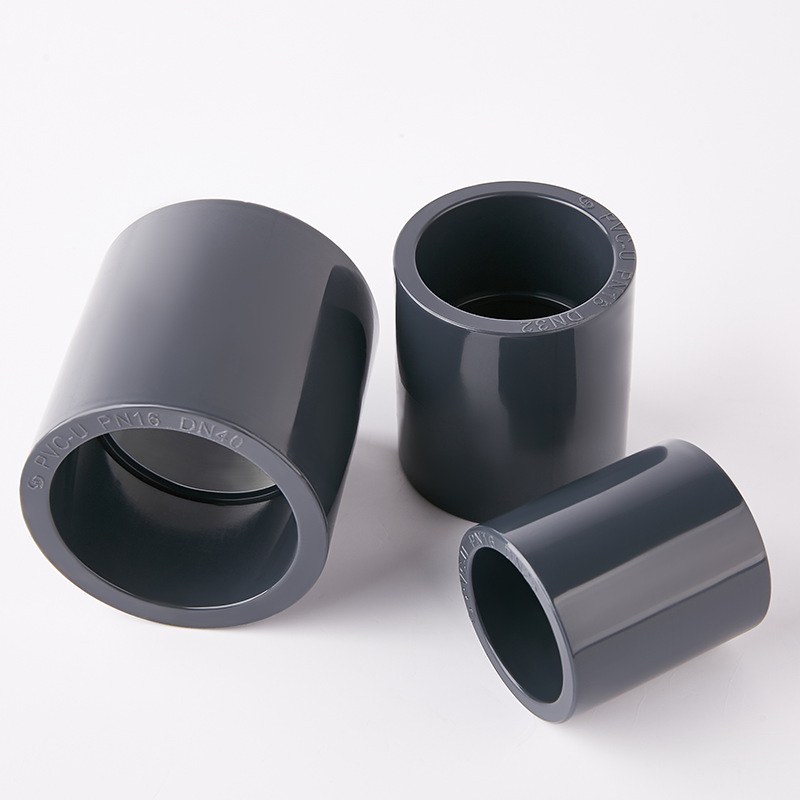

Konektor pipa pvc Huiya diproduksi dari bahan baku PVC baru, dibentuk utuh, menebal dan tahan tekanan, dengan ketahanan yang kuat terhadap korosi asam dan alkali. Mereka terutama diterapkan di bidang kimia dan industri. Kopling upvc ini adalah seri DIN, dengan tabung DIN UPVC dihubungkan di kedua ujungnya. Coupling pipa pvc jenis ini mampu menahan tekanan 16 kilogram dan tersedia dalam spesifikasi mulai dari DN15 hingga DN300. Konektor PVC Huiya diproduksi secara ketat sesuai dengan standar DIN dan semuanya menjalani pemeriksaan sebelum meninggalkan pabrik. Kualitas produk sangat baik. Selamat datang untuk menanyakan.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | PVC Coupling | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Sebagai Pemasok Soket Tekanan PVC Kustom terkemuka, kami berspesialisasi dalam menyediakan solusi perpipaan berkinerja tinggi untuk lingkungan industri yang paling menuntut. Kopling PVC PN16 kami dicetak secara presisi untuk memastikan sambungan yang aman dan anti bocor, menjaga integritas struktural penuh bahkan di bawah tekanan konstan 1,6 MPa.

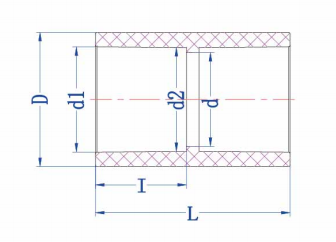

| PN16 PVC coupling dimensions chart (Unit: mm) | |||||||
| Nominal | Socket Type | Structural Diameter | |||||
| SIZE | d1 | d2 | I | D | d | L | |
| DN15 | 20mm PVC coupling | 20.3 | 20.0 | 16.0 | 27.0 | 17.0 | 37.3 |
| DN20 | 25mm PVC coupling | 25.3 | 25.0 | 19.0 | 33.0 | 23.0 | 42.0 |
| DN25 | 32mm PVC coupling | 32.3 | 32.0 | 22.0 | 40.5 | 29.0 | 49.4 |
| DN32 | 40mm PVC coupling | 40.4 | 40.0 | 26.0 | 52.0 | 37.0 | 57.0 |
| DN40 | 50mm PVC coupling | 50.4 | 50.0 | 31.0 | 61.0 | 47.0 | 68.0 |
| DN50 | 63mm PVC coupling | 63.4 | 63.0 | 38.0 | 75.0 | 60.0 | 82.0 |
| DN65 | 75mm PVC coupling | 75.5 | 75.0 | 44.0 | 89.4 | 72.0 | 95.0 |
| DN80 | 90mm PVC coupling | 90.5 | 90.0 | 51.0 | 107.3 | 87.1 | 111.2 |
| DN100 | 110mm PVC coupling | 110.5 | 110.1 | 61.0 | 131.0 | 106.1 | 133.0 |
| DN125 | 140mm PVC coupling | 140.6 | 140.1 | 76.0 | 167.2 | 133.0 | 158.0 |
| DN150 | 160mm PVC coupling | 160.6 | 160.1 | 86.0 | 185.0 | 154.0 | 179.5 |
| DN250 | 225mm PVC coupling | 225.8 | 225.1 | 118.0 | 257.0 | 218.0 | 252.0 |
| DN300 | 280mm PVC coupling | 281.5 | 280.1 | 148.5 | 323.8 | 271.0 | 308.0 |
| DN350 | 315mm PVC coupling | 317.0 | 314.9 | 167.0 | 364.0 | 304.0 | 345.0 |
| Industrial PVC COUPLING DIN PN16: Technical Data, Size Table,Price & Packing Details | |||||
| Size | Carton Size (cm) | Qty/Ctn | Weight (g/pc) | Price/Piece ($) | |
| DN15 | 20mm PVC COUPLING | 41*41*34 | 1440 | 11.65 | 0.05 |
| DN20 | 25mm PVC COUPLING | 52.5*38*37 | 1120 | 17.3 | 0.07 |
| DN25 | 32mm PVC COUPLING | 52.5*38*37 | 600 | 29.3 | 0.11 |
| DN32 | 40mm PVC COUPLING | 55*43*35 | 360 | 53.75 | 0.18 |
| DN40 | 50mm PVC COUPLING | 60*46*33 | 220 | 81.8 | 0.3 |
| DN50 | 63mm PVC COUPLING | 52.5*38*37 | 120 | 151.5 | 0.48 |
| DN65 | 75mm PVC COUPLING | 52.5*38*37 | 88 | 226.5 | 0.71 |
| DN80 | 90mm PVC COUPLING | 52.5*38*37 | 48 | 348 | 1.07 |
| DN100 | 110mm PVC COUPLING | 60*56*27 | 38 | 560 | 1.84 |
| DN125 | 140mm PVC COUPLING | 52.5*38*37 | 12 | 1118 | 3.99 |
| DN150 | 160mm PVC COUPLING | 60*56*27 | 9 | 1687 | 5.75 |
| DN200 | 225mm PVC COUPLING | 52*52*26.5 | 4 | 3324 | 12.76 |
| DN250 | 280mm PVC COUPLING | 58.5*48*36.5 | 2 | 5030 | 45.32 |
| DN300 | 315mm PVC COUPLING | 81*41*35 | 2 | 8541 | 69.72 |
