Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1 Piece/Pieces
Transportasi:Ocean,Land,Air
$0.1-1 /Piece/Pieces
Merek: HY atau OEM
Layanan Garansi: 3 tahun
Tempat Asal: Cina
Brand Name: HY or Oem
Material: CPVC
Water Absorption: ＜0.01%
Baik: PIPA TERMOPLASTIK
Pressure: 1.6Mpa
Contraction: 1.0%~2.5%
Standar: DIN
Temperature: -15 to 55 Degree Celsius
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |

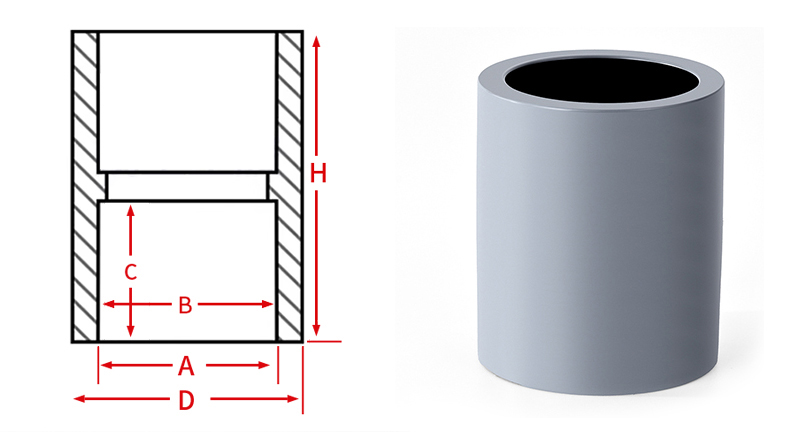

| Key Word: | CPVC Pipe Coupling Din Pn16 for Industrial Use | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | CPVC(PVC-C) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

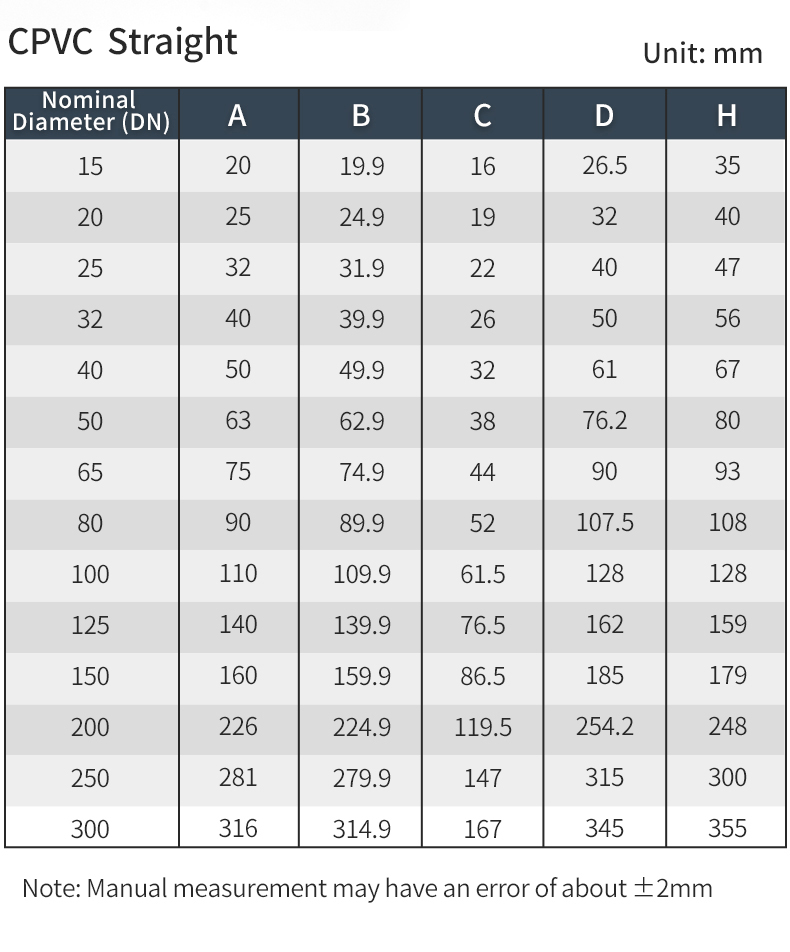

Baik Anda mengelola jalur pemrosesan bahan kimia atau jaringan distribusi air panas, kopling kami memberikan stabilitas termal dan ketahanan bahan kimia yang diperlukan untuk keandalan jangka panjang. Untuk membantu desain dan pengadaan sistem Anda, silakan lihat Bagan Dimensi Kopling CPVC PN16 kami yang komprehensif di bawah untuk spesifikasi metrik yang tepat. Kami berkomitmen mendukung infrastruktur skala besar dengan memberikan kualitas premium dengan Harga Pabrik CPVC Coupling PN16 yang kompetitif.
