Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1
Transportasi:Ocean,Land,Air
$0.1-1 /
Merek: HY atau OEM
Layanan Garansi: 3 tahun
Tempat Asal: Cina
Support Customization: Oem
Aplikasi: General
Medium Temperature: Normal Temperature
Flow Medium: Water, Oil, Acid
Bahan: UPVC
Standar: Astm
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | PVC Integral Flange Astm Sch80 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | 1/2",3/4",1,1-1/4",1-1/2",2",2-1/2",3",4",5",6",8",10",12",14"（inch） | ||
| Color: | Grey | |||
| Standard: | ASTM D2467, Schedule80（SCH80）, Schedule40（SCH40） | |||
| Working pressure: | SCH80/SCH40 | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

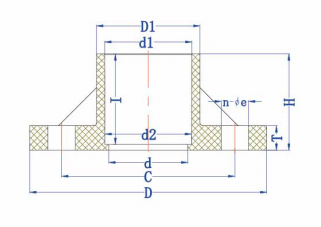

| SCH80 UPVC flange dimensions chart (Unit: mm) | |||||||||||
| SIZE | D (mm/inch) | D1 (mm/inch) | C (mm/inch) | d (mm/inch) | d1 (mm/inch) | d2 (mm/inch) | H (mm/inch) | T (mm/inch) | I (mm/inch) | n-fe | |
| DN15 | 1"UPVC flange | 108.0 / 4.25 | 43.0 / 1.69 | 79.5 / 3.13 | 28.0 / 1.10 | 33.65 / 1.32 | 33.27 / 1.31 | 45.0 / 1.77 | 16 / 0.63 | 39.0 / 1.54 | 4-16 |
| DN20 | 1-1/4"UPVC flange | 118.0 / 4.65 | 52.0 / 2.05 | 89.0 / 3.50 | 32.0 / 1.26 | 42.42 / 1.67 | 42.04 / 1.65 | 49.0 / 1.93 | 16 / 0.63 | 43.5 / 1.71 | 4-16 |
| DN25 | 1-1/2"UPVC flange | 127.0 / 5.00 | 60.5 / 2.38 | 98.5 / 3.88 | 43.0 / 1.69 | 48.56 / 1.91 | 48.11 / 1.90 | 41.5 / 1.63 | 17 / 0.67 | 35.0 / 1.38 | 4-16 |
| DN32 | 2"UPVC flange | 165.0 / 6.50 | 75.0 / 2.95 | 120.7 / 4.75 | 55.0 / 2.17 | 60.63 / 2.39 | 60.17 / 2.37 | 45.0 / 1.77 | 17 / 0.67 | 37.7 / 1.48 | 4-19 |
| DN40 | 2-1/2"UPVC flange | 178.0 / 7.01 | 89.0 / 3.50 | 139.7 / 5.50 | 65.0 / 2.56 | 73.38 / 2.89 | 72.85 / 2.87 | 53.0 / 2.09 | 23 / 0.91 | 44.5 / 1.75 | 4-19 |
| DN50 | 3"UPVC flange | 191.0 / 7.52 | 106.7 / 4.20 | 152.4 / 6.00 | 80.0 / 3.15 | 89.31 / 3.52 | 88.70 / 3.50 | 54.0 / 2.13 | 21 / 0.83 | 48.0 / 1.89 | 4-19 |
| DN65 | 4"UPVC flange | 230.0 / 9.06 | 133.0 / 5.24 | 190.5 / 7.50 | 100.0 / 3.94 | 114.76 / 4.52 | 114.10 / 4.50 | 65.0 / 2.56 | 24 / 0.94 | 57.3 / 2.26 | 8-19 |
| DN80 | 5"UPVC flange | 254.0 / 10.00 | 162.0 / 6.38 | 215.9 / 8.50 | 125.0 / 4.92 | 141.81 / 5.58 | 141.00 / 5.55 | 78.5 / 3.09 | 24 / 0.94 | 67.0 / 2.64 | 8-22 |
| DN100 | 6"UPVC flange | 279.0 / 11.00 | 191.0 / 7.52 | 241.3 / 9.50 | 150.0 / 5.91 | 168.83 / 6.65 | 168.00 / 6.61 | 89.0 / 3.50 | 25 / 0.98 | 75.0 / 2.95 | 8-22 |
| DN125 | 8"UPVC flange | 343.0 / 13.50 | 246.0 / 9.69 | 298.5 / 11.75 | 200.0 / 7.87 | 219.84 / 8.65 | 218.70 / 8.61 | 114.5 / 4.51 | 28 / 1.10 | 101.0 / 3.98 | 8-22 |
