Jenis pembayaran:L/C,T/T,D/P,D/A
Inkoterm:FOB,CFR,CIF
Min. Memesan:1
Transportasi:Ocean,Land,Air
$0.1-1 /
Merek: HY atau OEM
Material: PVC
Contraction Percentage: 1.0%~2.5%
Kekuatan Tarik: （30 ~ 40） MPa
Pressure: SCH80
Merek: HY or Oem
Layanan Garansi: 3 tahun
Tempat Asal: Cina
Temperature: -15 to 55 Degree Celsius
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A
Inkoterm: FOB,CFR,CIF

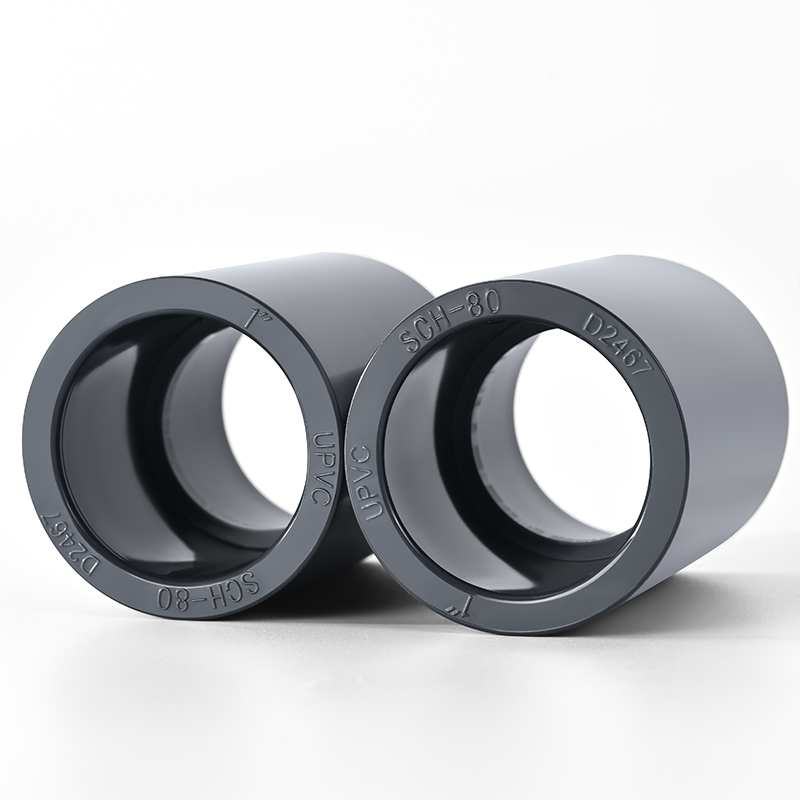

Kopling PVC 80, konektor PVC 1/2, dan kopling PVC 2 inci merupakan komponen penting dalam sistem perpipaan dan perpipaan. Dirancang untuk sambungan sambungan yang mulus, kopling PVC 80 cocok dengan pipa berdiameter 80 mm, memastikan sambungan yang aman dan anti bocor. Konektor PVC 1/2 inci menyediakan sambungan yang andal untuk saluran berdiameter lebih kecil, ideal untuk aplikasi perumahan atau tugas ringan. Sementara itu, kopling PVC berukuran 2 inci dapat menampung pipa yang lebih besar, yang biasa digunakan pada sistem drainase dan irigasi. Bersama-sama, kopling ini menawarkan keserbagunaan, daya tahan, dan kemudahan pemasangan, menjadikannya sangat diperlukan baik dalam proyek DIY maupun instalasi profesional. Terbuat dari PVC berkualitas tinggi, tahan korosi dan tahan terhadap berbagai kondisi tekanan, memastikan kinerja dan keandalan jangka panjang.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | PVC Coupling Socket SCH80 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | 1/2",3/4",1,1-1/4",1-1/2",2",2-1/2",3",4",5",6",8",10",12",14"（inch） | ||
| Color: | Grey | |||
| Standard: | ASTM D2467, Schedule80（SCH80）, Schedule40（SCH40） | |||
| Working pressure: | SCH80/SCH40 | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Kopling Soket UPVC Jadwal 80 kami dirancang untuk lingkungan industri bertekanan tinggi di mana daya tahan tidak dapat dinegosiasikan. Dibandingkan dengan opsi standar, peringkat tekanan UPVC Sch 80 vs Sch 40 menyoroti keunggulan yang signifikan: Fitting Sch 80 memiliki dinding yang lebih tebal, memungkinkannya menangani tingkat PSI yang jauh lebih tinggi dan tekanan mekanis yang lebih keras. Hal ini menjadikannya standar emas untuk sistem perpipaan tugas berat.
| SCH80 UPVC coupling dimensions chart (Unit: mm) | |||||||
| Nominal | Socket Type | Structural Diameter | |||||
| SIZE | d1 (mm/inch) | d2 (mm/inch) | I (mm/inch) | D (mm/inch) | d (mm/inch) | H (mm/inch) | |
| DN15 | 1/2"UPVC coupling | 21.54 / 0.85 | 21.23 / 0.84 | 23.0 / 0.91 | 29.2 / 1.15 | 16.0 / 0.63 | 50.0 / 1.97 |
| DN20 | 3/4"UPVC coupling | 26.87 / 1.06 | 26.57 / 1.05 | 25.5 / 1.00 | 34.9 / 1.37 | 22.0 / 0.87 | 55.8 / 2.20 |
| DN25 | 1"UPVC coupling | 33.65 / 1.32 | 33.27 / 1.31 | 28.5 / 1.12 | 43.0 / 1.69 | 30.0 / 1.18 | 62.5 / 2.46 |
| DN32 | 1-1/4"UPVC coupling | 42.42 / 1.67 | 42.04 / 1.65 | 32.5 / 1.28 | 52.3 / 2.06 | 38.0 / 1.50 | 68.8 / 2.71 |
| DN40 | 1-1/2"UPVC coupling | 48.56 / 1.91 | 48.11 / 1.90 | 35.0 / 1.38 | 58.9 / 2.32 | 43.0 / 1.70 | 76.0 / 3.00 |
| DN50 | 2"UPVC coupling | 60.63 / 2.39 | 60.17 / 2.37 | 38.5 / 1.52 | 71.9 / 2.83 | 54.0 / 2.13 | 83.4 / 3.28 |
| DN65 | 2-1/2"UPVC coupling | 73.38 / 2.89 | 72.85 / 2.87 | 45.0 / 1.77 | 87.6 / 3.45 | 67.0 / 2.64 | 97.0 / 3.82 |
| DN80 | 3"UPVC coupling | 89.31 / 3.52 | 88.70 / 3.50 | 48.0 / 1.89 | 104.8 / 4.13 | 82.0 / 3.23 | 104.2 / 4.10 |
| DN100 | 4"UPVC coupling | 114.76 / 4.52 | 114.10 / 4.50 | 57.0 / 2.24 | 132.0 / 5.20 | 106.0 / 4.17 | 125.6 / 4.95 |
| DN125 | 5”UPVC coupling | 141.81 / 5.58 | 141.00 / 5.55 | 76.0 / 3.00 | 166.5 / 6.56 | 133.0 / 5.24 | 158.3 / 6.23 |
| DN150 | 6”UPVC coupling | 168.83 / 6.65 | 168.00 / 6.61 | 76.0 / 3.00 | 190.8 / 7.51 | 158.0 / 6.22 | 159.5 / 6.28 |
| DN200 | 8"UPVC coupling | 219.84 / 8.65 | 218.70 / 8.61 | 102.0 / 4.02 | 245.3 / 9.66 | 200.0 / 7.87 | 210.5 / 8.29 |
| DN250 | 10"UPVC coupling | 273.81 / 10.78 | 272.67 / 10.74 | 128.0 / 5.04 | 307.0 / 12.09 | 262.5 / 10.33 | 266.0 / 10.47 |
| DN300 | 12"UPVC coupling | 324.61 / 12.78 | 323.47 / 12.74 | 172.0 / 6.77 | 364.0 / 14.33 | 300.0 / 11.81 | 345.0 / 13.58 |
