Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1
Transportasi:Ocean,Land,Air
$0.8-1 /
Merek: HY atau OEM
Tempat Asal: Cina
Material: Pvc
Baik: PIPA TERMOPLASTIK
Water Absorption: ＜0.01%
Kekuatan Tarik: （30 ~ 40） MPa
Warna: Abu -abu gelap
Temperature: 0 To 70 Degree Celsius
Pressure: SCH80
Merek: HY or Oem
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF

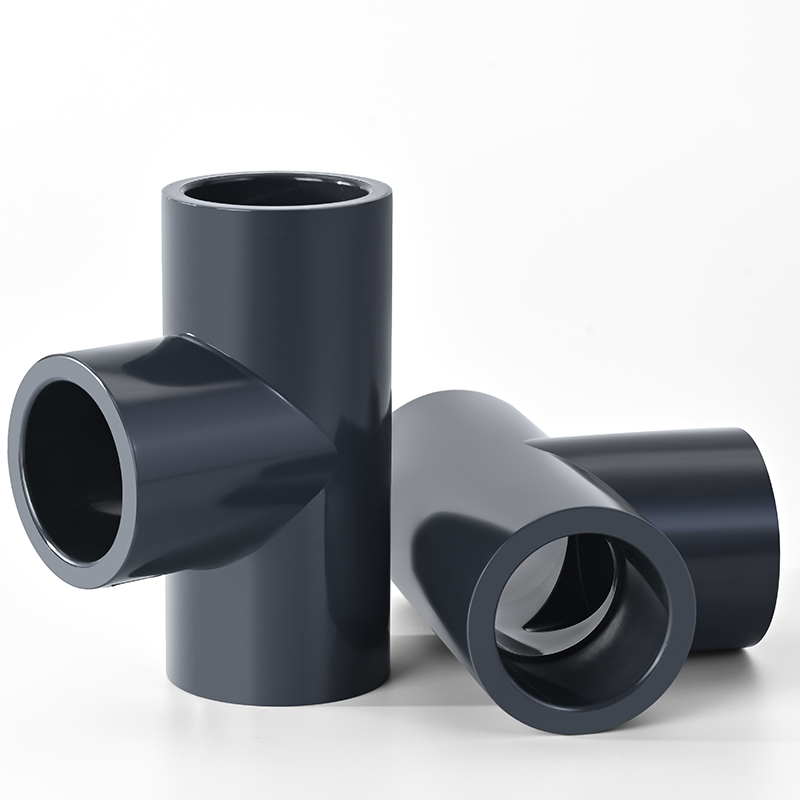

Tee PVC 80, tee PVC 1½ inci, dan tee PVC Y adalah perlengkapan penting dalam sistem perpipaan dan perpipaan. Tee PVC 80, dirancang untuk ukuran pipa nominal 80mm (kira-kira 3"), memastikan distribusi aliran yang andal dalam sistem yang lebih besar. Tee PVC 1½ in, cocok untuk pipa 1,5 inci, menawarkan solusi ringkas namun tahan lama untuk sambungan bercabang. Sementara itu, tee PVC Y memberikan pemisahan 45 derajat, ideal untuk aplikasi yang memerlukan pengurangan turbulensi dan transisi aliran yang lebih mulus. Terbuat dari bahan PVC yang tahan lama, tee ini tahan terhadap korosi, bahan kimia, dan tekanan tinggi, menjadikannya sempurna untuk perumahan, komersial, dan penggunaan industri. Desain standarnya memastikan kemudahan pemasangan dan kompatibilitas dengan berbagai sistem pipa, meningkatkan efisiensi dan integritas sistem.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | PVC High Quality Tee ASTM SCH80 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Sebagai Produsen Tee UPVC Sch 80 terkemuka di Tiongkok, kami mengkhususkan diri dalam menyediakan solusi perpipaan tugas berat yang dirancang untuk lingkungan yang paling menuntut. UPVC Equal Tee Schedule 80 kami dirancang untuk kekuatan dan daya tahan yang unggul dibandingkan perlengkapan standar.
| SCH80 UPVC tee dimensions chart (Unit: mm) | ||||||||
| Nominal | Socket Type | Structural Diameter | ||||||
| SIZE | d1 (mm/inch) | d2 (mm/inch) | I (mm/inch) | D (mm/inch) | d (mm/inch) | L (mm/inch) | L1 (mm/inch) | |
| DN15 | 1/2"UPVC tee | 21.54 / 0.85 | 21.23 / 0.84 | 22.5 / 0.89 | 29.2 / 1.15 | 16.0 / 0.63 | 69.6 / 2.74 | 34.8 / 1.37 |
| DN20 | 3/4"UPVC tee | 26.87 / 1.06 | 26.57 / 1.05 | 25.5 / 1.00 | 34.9 / 1.37 | 22.0 / 0.87 | 82.0 / 3.23 | 40.9 / 1.61 |
| DN25 | 1"UPVC tee | 33.65 / 1.32 | 33.27 / 1.31 | 29.0 / 1.14 | 43.0 / 1.69 | 30.0 / 1.18 | 94.3 / 3.71 | 47.0 / 1.85 |
| DN32 | 1-1/4"UPVC tee | 42.42 / 1.67 | 42.04 / 1.65 | 32.5 / 1.28 | 52.3 / 2.06 | 38.0 / 1.50 | 108.5 / 4.27 | 54.3 / 2.14 |
| DN40 | 1-1/2"UPVC tee | 48.56 / 1.91 | 48.11 / 1.90 | 35.0 / 1.38 | 58.9 / 2.32 | 43.0 / 1.70 | 122.5 / 4.82 | 60.9 / 2.40 |
| DN50 | 2"UPVC tee | 60.63 / 2.39 | 60.17 / 2.37 | 38.0 / 1.50 | 71.9 / 2.83 | 54.0 / 2.13 | 140.7 / 5.54 | 70.1 / 2.76 |
| DN65 | 2-1/2"UPVC tee | 73.38 / 2.89 | 72.85 / 2.87 | 47.0 / 1.85 | 87.6 / 3.45 | 67.0 / 2.64 | 166.5 / 6.56 | 83.0 / 3.27 |
| DN80 | 3"UPVC tee | 89.31 / 3.52 | 88.70 / 3.50 | 47.0 / 1.85 | 104.8 / 4.13 | 82.0 / 3.23 | 188.0 / 7.40 | 93.6 / 3.69 |
| DN100 | 4"UPVC tee | 114.76 / 4.52 | 114.10 / 4.50 | 58.0 / 2.28 | 132.0 / 5.20 | 106.0 / 4.17 | 232.0 / 9.13 | 115.6 / 4.55 |
| DN125 | 5"UPVC tee | 141.81 / 5.58 | 141.00 / 5.55 | 76.0 / 3.00 | 167.0 / 6.57 | 133.0 / 5.24 | 298.5 / 11.75 | 149.0 / 5.87 |
| DN150 | 6"UPVC tee | 168.83 / 6.65 | 168.00 / 6.61 | 76.0 / 3.00 | 190.8 / 7.51 | 158.0 / 6.22 | 331.0 / 13.03 | 165.1 / 6.50 |
| DN200 | 8"UPVC tee | 219.84 / 8.65 | 218.70 / 8.61 | 102.0 / 4.02 | 245.3 / 9.66 | 200.0 / 7.87 | 432.0 / 17.01 | 215.9 / 8.50 |
| DN250 | 10"UPVC tee | 273.81 / 10.78 | 272.67 / 10.74 | 129.0 / 5.08 | 305.8 / 12.04 | 262.5 / 10.33 | 552.0 / 21.73 | 278.0 / 10.94 |
| DN300 | 12"UPVC tee | 324.61 / 12.78 | 323.47 / 12.74 | 172.0 / 6.77 | 364.0 / 14.33 | 300.0 / 11.81 | 654.0 / 25.75 | 327.0 / 12.87 |
