Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1 Piece/Pieces
Transportasi:Ocean,Land,Air
$0.1-1 /Piece/Pieces
Merek: HY atau OEM
Material: Pvc
Baik: PIPA TERMOPLASTIK
Water Absorption: ＜0.01%
Contraction Percentage: 1.0%~2.5%
Kekuatan Tarik: （30 ~ 40） MPa
Temperature: 0 To 70 Degree Celsius
Warna: Abu -abu gelap
Pressure: SCH80
Tempat Asal: Cina
Layanan Garansi: 3 tahun
Merek: HY or Oem
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | PVC Female Coupling SCH80 | ||||
| Connect Type: | Cement-Glue-Socket | ||||
| Brand: | HUIYA or OEM | ||||
| Material: | PVC(PVC-U) | ||||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | |||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | |||||
| Color: | Grey | ||||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | ||||
| Working pressure: | PN16(1.6Mpa) | ||||
| Working temperature: | 0 To 70 Degree Celsius | ||||
| Production Process: | Mold Injected | ||||
| Packing: | Cartons | ||||
| Advantage: | 1.100% virgin PVC material | ||||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | |||||
| 3.Strictly produced according to ISO standard | |||||
| 4.Long lifetime | |||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | |||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | ||||
| HS Code: | 391740 | ||||
| Certificate: | SGS | ||||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | ||||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | |||||
Memahami nuansa teknis penanganan cairan adalah kunci keberhasilan proyek. Itulah sebabnya kami memberikan perbandingan mendetail seperti Flange Batu Van UPVC vs Flange One-Piece untuk membantu teknisi memilih integritas struktural yang tepat untuk peringkat tekanan spesifiknya. Meskipun flensa Van Stone menawarkan penyelarasan lubang baut yang lebih mudah, desain One-Piece kami memberikan konstruksi monolitik yang kuat dan ideal untuk instalasi permanen dan bertekanan tinggi.

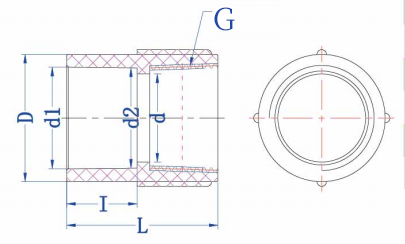

| SCH80 UPVC female adapter dimensions chart (Unit: mm) | ||||||||
| Nominal | Outside Dia | Socket Type | Structural Diameter | |||||
| SIZE | D (mm/inch) | d1 (mm/inch) | d2 (mm/inch) | I (mm/inch) | d (mm/inch) | L (mm/inch) | NPT(牙/寸) | |
| DN15 | 1/2"UPVC female adapter | 30.0 / 1.18 | 21.54 / 0.85 | 21.23 / 0.84 | 23.0 / 0.91 | 18.0 / 0.71 | 44.0 / 1.73 | 14 |
| DN20 | 3/4"UPVC female adapter | 35.0 / 1.38 | 26.87 / 1.06 | 26.57 / 1.05 | 26.0 / 1.02 | 23.0 / 0.91 | 50.0 / 1.97 | 14 |
| DN25 | 1"UPVC female adapter | 43.0 / 1.69 | 33.65 / 1.32 | 33.27 / 1.31 | 29.0 / 1.14 | 29.0 / 1.14 | 55.0 / 2.17 | 11.5 |
| DN32 | 1-1/4"UPVC female adapter | 52.5 / 2.07 | 42.42 / 1.67 | 42.04 / 1.65 | 32.0 / 1.26 | 37.0 / 1.46 | 62.0 / 2.44 | 11.5 |
| DN40 | 1-1/2"UPVC female adapter | 59.0 / 2.32 | 48.56 / 1.91 | 48.11 / 1.90 | 36.0 / 1.42 | 43.0 / 1.70 | 67.0 / 2.64 | 11.5 |
| DN50 | 2"UPVC female adapter | 72.0 / 2.83 | 60.63 / 2.39 | 60.17 / 2.37 | 38.5 / 1.52 | 54.0 / 2.13 | 73.0 / 2.87 | 11.5 |
| DN65 | 2-1/2"UPVC female adapter | 88.0 / 3.46 | 73.38 / 2.89 | 72.85 / 2.87 | 45.0 / 1.77 | 64.0 / 2.52 | 81.2 / 3.20 | 8 |
| DN80 | 3"UPVC female adapter | 105.3 / 4.15 | 89.31 / 3.52 | 88.70 / 3.50 | 48.5 / 1.91 | 77.0 / 3.03 | 86.7 / 3.41 | 8 |
| DN100 | 4"UPVC female adapter | 132.5 / 5.22 | 114.76 / 4.52 | 114.10 / 4.50 | 58.5 / 2.30 | 96.0 / 3.78 | 98.5 / 3.88 | 8 |
