Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1
Transportasi:Ocean,Land,Air
$0.1-1 /
Merek: HY atau OEM
Model No: RPV162
Sertifikasi: SGS
Shape: Equal
Head Code: Square
Standar: DIN, ANSI, JIS
Tubuh: Kaca borosilikat
Koneksi: Lainnya
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | CPVC Sight Glass Flange Connection For Corrosive Liquid | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | CPVC(PVC-C) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

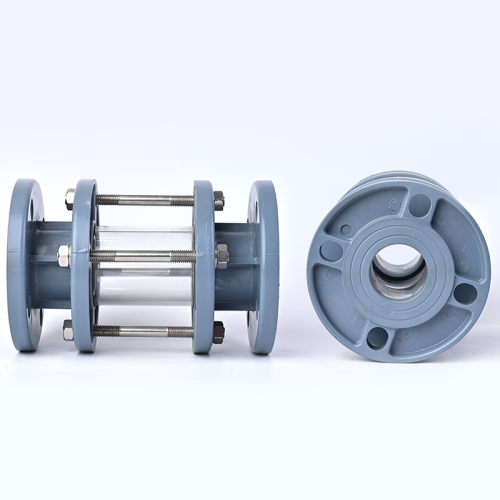

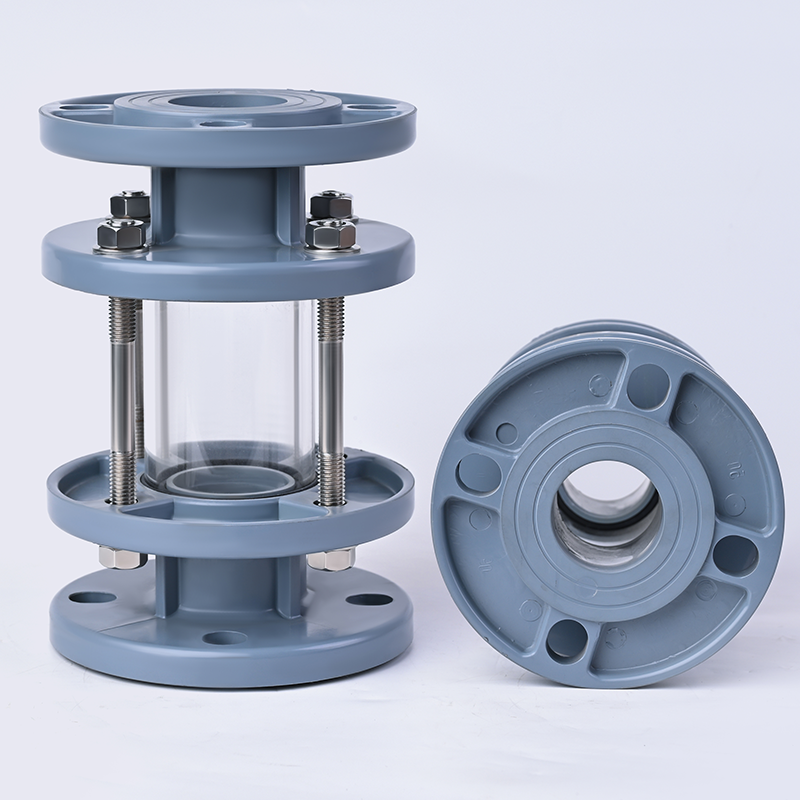

Koneksi Flange Kaca Penglihatan CPVC kami adalah pilihan kelas industri untuk pemantauan cairan! Kaca penglihatan yang tahan lama dengan flensa, jenis flensa kaca penglihatan ini dilengkapi dengan flensa kaca penglihatan yang kokoh untuk pemasangan yang aman. CPVC bermutu tinggi menawarkan ketahanan panas/kimia yang luar biasa, lensa bening anti pecah untuk pemeriksaan aliran waktu nyata—mudah dipasang/dipelihara untuk transfer industri & jaringan pipa kimia.
| CPVC Inspection Glass Parts&Material | ||
No. |
Parts |
Materials |
| l | Inspection glass flange | CPVC |
| 2 | Tube sealing | EPDM,FPM,PTFE |
| 3 | Glass | Glass |
| 4 | Stud Bolt | Steel,Stainless Steel |
| 5 | Nut | Steel,Stainless Steel |
| CPVC DIN Inspection Glass Dimensions Table (mm) | |||||||
| DN | D1 | D | L | h | n | φ | (Mpa) working pressure |
| DIN | HG/DIN | HG/DIN | |||||
| 25 | 115 | 85 | 235 | 16 | 4 | 14 | 0.6 |
| 32 | 135 | 100 | 235 | 16 | 4 | 18 | 0.6 |
| 40 | 145 | 110 | 235 | 16 | 4 | 18 | 0.6 |
| 50 | 160 | 125 | 235 | 16 | 4 | 18 | 0.6 |
| 65 | 180 | 145 | 235 | 18 | 4 | 18 | 0.6 |
| 80 | 195 | 160 | 235 | 18 | 8 | 18 | 0.6 |
| 100 | 215 | 180 | 235 | 20 | 8 | 18 | 0.6 |
| 125 | 245 | 210 | 315 | 20 | 8 | 18 | 0.3 |
| 150 | 280 | 240 | 370 | 20 | 8 | 22 | 0.3 |
| 200 | 340 | 295 | 385 | 25 | 8 | 22 | 0.3 |
| 250 | 405 | 350 | 420 | 28 | 12 | 22 | 0.3 |
| CPVC JIS Inspection Glass Dimensions Table (mm) | |||||||
| DN | D1 | D | L | h | n | φ | (Mpa) working pressure |
| JIS | JIS | JIS | |||||
| 25 | 115 | 90 | 235 | 16 | 4 | 15 | 0.6 |
| 32 | 135 | 100 | 235 | 16 | 4 | 19 | 0.6 |
| 40 | 145 | 105 | 235 | 16 | 4 | 19 | 0.6 |
| 50 | 160 | 120 | 235 | 16 | 4 | 19 | 0.6 |
| 65 | 180 | 140 | 235 | 18 | 4 | 19 | 0.6 |
| 80 | 195 | 150 | 235 | 18 | 8 | 19 | 0.6 |
| 100 | 215 | 175 | 235 | 20 | 8 | 19 | 0.6 |
| 125 | 245 | 210 | 315 | 20 | 8 | 19 | 0.3 |
| 150 | 280 | 240 | 370 | 20 | 8 | 23 | 0.3 |
| 200 | 340 | 290 | 385 | 25 | 12* | 23 | 0.3 |
| 250 | 405 | 355 | 420 | 28 | 12 | 25 | 0.3 |
| CPVC ANSI Inspection Glass Dimensions Table (mm) | |||||||
| DN | D1 | D | L | h | n | φ | (Mpa) working pressure |
| ANSI | ANSI | ANSI | |||||
| 25 | 115 | 79 | 235 | 16 | 4 | 16 | 0.6 |
| 32 | 135 | 89 | 235 | 16 | 4 | 16 | 0.6 |
| 40 | 145 | 98 | 235 | 16 | 4 | 16 | 0.6 |
| 50 | 160 | 121 | 235 | 16 | 4 | 19 | 0.6 |
| 65 | 180 | 140 | 235 | 18 | 4 | 19 | 0.6 |
| 80 | 195 | 152 | 235 | 18 | 4* | 19 | 0.6 |
| 100 | 215 | 190 | 235 | 20 | 8 | 19 | 0.6 |
| 125 | 245 | 216 | 315 | 20 | 8 | 22 | 0.3 |
| 150 | 280 | 241 | 370 | 20 | 8 | 22 | 0.3 |
| 200 | 340 | 298 | 385 | 25 | 8 | 22 | 0.3 |
| 250 | 405 | 362 | 420 | 28 | 12 | 26 | 0.3 |
