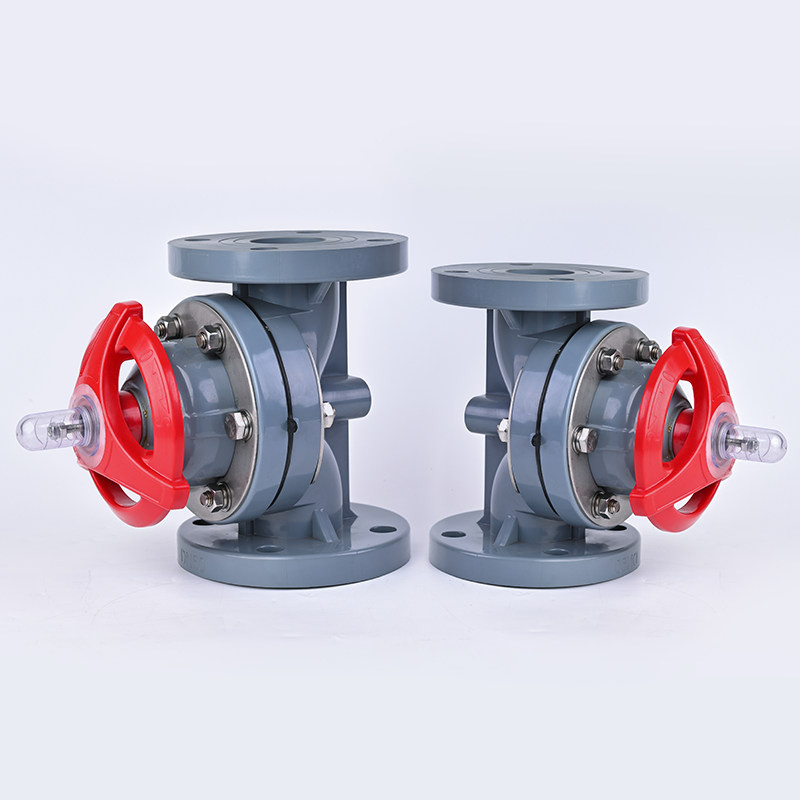

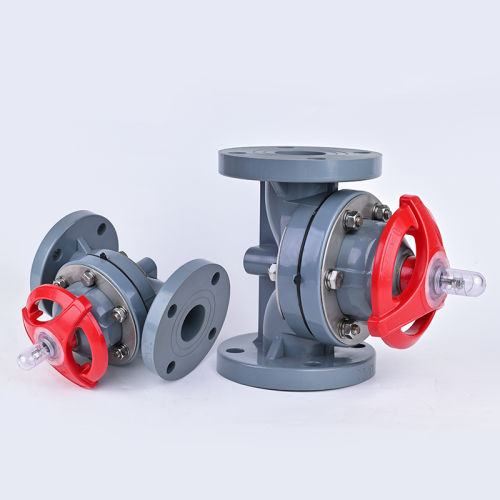

Katup diafragma bergelang CPVC menggabungkan daya tahan dan ketahanan terhadap bahan kimia, sehingga ideal untuk aplikasi industri. Dirancang sebagai katup diafragma industri, katup ini memastikan kontrol cairan yang andal dengan bodi CPVC yang tangguh dan diafragma fleksibel. Sempurna untuk penanganan air dan bahan kimia, katup air diafragma ini menawarkan kinerja penyegelan yang sangat baik, ketahanan terhadap korosi, dan perawatan yang mudah—ideal untuk lingkungan yang menuntut dalam industri proses.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | Diaphragm Valve CPVC Flange DIN PN10 | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | CPVC(PVC-C) | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | Normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Sebagai Produsen Katup Diafragma CPVC terkemuka, kami berspesialisasi dalam menyediakan solusi kontrol aliran berkualitas tinggi yang dirancang untuk lingkungan yang paling menuntut. Seri Katup Diafragma Bergelang CPVC kami dirancang untuk daya tahan yang unggul, menawarkan stabilitas termal dan kekuatan mekanik yang sangat baik.
| CPVC Flanged Diaphragm Valves Parts&Material | ||
No. |
Parts |
Materials |
| 1 | gauge cover | PC |
| 2 | stud nut | steel,stainless steel |
| 3 | Hand wheel | ABS,FRPP |
| 4 | Bonnet | CPVC |
| 5 | sleeve | cast iron,copper alloy |
| 6 | Board | Plastc-coated steel,stainless steel |
| 7 | Stud Bolt &Nut | steel,stainless steel |
| 8 | Stem | steel,stainless steel,copperalloy |
| 9 | Body | CPVC |
| 10 | compressor | CPVC |
| 11 | Cushion | EPDM |
| 12 | Diaphragm | EPDM,FPM,FEP,PFA,PTFE |
| 13 | Grease Nipple | copperalloy,stainless steel DN80-300 used only |
| CPVC DIN Flanged Diaphragm Valves Dimensions Table | ||||||
| DN | D1(mm) | D(mm) | L(mm) | h(mm) | n | φ(mm) |
| HG/DIN | HG/DIN | HG/DIN | HG/DIN | HG/DIN | ||
| 15 | 95 | 65 | 125 | 14 | 4 | 14 |
| 20 | 105 | 75 | 135 | 16 | 4 | 14 |
| 25 | 115 | 85 | 145/160 | 16 | 4 | 14 |
| 32 | 135 | 100 | 160/180 | 16 | 4 | 18 |
| 40 | 145 | 110 | 180 | 16 | 4 | 18 |
| 50 | 160 | 125 | 210/230 | 18 | 4 | 18 |
| 65 | 180 | 145 | 250 | 22 | 4 | 18 |
| 80 | 195 | 160 | 300 | 25 | 8 | 18 |
| 100 | 215 | 180 | 350 | 25 | 8 | 18 |
| 125 | 255 | 210 | 405 | 30 | 8 | 18 |
| 150 | 280 | 240 | 460 | 30 | 8 | 22 |
| 200 | 340 | 295 | 575 | 38 | 8 | 22 |
| 250 | 395 | 350 | 685 | 38 | 12 | 22 |
| 300 | 480 | 400 | 790 | 40 | 12 | 22 |
| CPVC JIS Flanged Diaphragm Valves Dimensions Table | ||||||
| DN | D1(mm) | D(mm) | L(mm) | h(mm) | n | φ(mm) |
| JIS | JIS | JIS | JIS | JIS | ||
| 15 | 95 | 70 | 110 | 14 | 4 | 15 |
| 20 | 100 | 75 | 120 | 16 | 4 | 15 |
| 25 | 125 | 90 | 130 | 16 | 4 | 15 |
| 32 | 135 | 100 | 160 | 16 | 4 | 19 |
| 40 | 145 | 105 | 180 | 16 | 4 | 19 |
| 50 | 160 | 120 | 210 | 18 | 4 | 19 |
| 65 | 180 | 140 | 250 | 22 | 4 | 19 |
| 80 | 195 | 150 | 280 | 25 | 8 | 19 |
| 100 | 220 | 175 | 340 | 25 | 8 | 19 |
| 125 | 255 | 210 | 405 | 30 | 8 | 19 |
| 150 | 280 | 240 | 460/480 | 30 | 8 | 23 |
| 200 | 340 | 290 | 575 | 38 | 12* | 23 |
| 250 | 395 | 355 | 685 | 38 | 12 | 25 |
| 300 | 480 | 400 | 790 | 40 | 16* | 25 |
| CPVC ANSI Flanged Diaphragm Valves Dimensions Table | ||||||
| DN | D1(mm) | D(mm) | L(mm) | h(mm) | n | φ(mm) |
| ANSI | ANSI | ANSI | ANSI | ANSI | ||
| 15 | 95 | 60 | 110 | 14 | 4 | 16 |
| 20 | 100 | 70 | 120 | 16 | 4 | 16 |
| 25 | 125 | 79 | 130 | 16 | 4 | 16 |
| 32 | 135 | 89 | 160 | 16 | 4 | 16 |
| 40 | 145 | 98 | 180 | 16 | 4 | 16 |
| 50 | 160 | 121 | 210 | 18 | 4 | 19 |
| 65 | 180 | 140 | 250 | 22 | 4 | 19 |
| 80 | 195 | 152 | 280 | 25 | 4* | 19 |
| 100 | 220 | 190 | 340 | 25 | 8 | 19 |
| 125 | 255 | 216 | 405 | 30 | 8 | 22 |
| 150 | 280 | 241 | 460/480 | 30 | 8 | 22 |
| 200 | 340 | 298 | 575 | 38 | 8 | 22 |
| 250 | 395 | 362 | 685 | 38 | 12 | 26 |
| 300 | 480 | 432 | 790 | 40 | 12 | 26 |
