Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1
Transportasi:Ocean,Land,Air
$0.1-1 /
Merek: HY atau OEM
Model No: RPV146
Warranty Period: 3 Years
Jenis: Katup Periksa Plastik
Support Customization: Oem
Place Of Origin: China
Sedang: Suhu Biasa
Power: Hydraulic
Flow Medium: Water, Oil, Acid
Structure: Check
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF

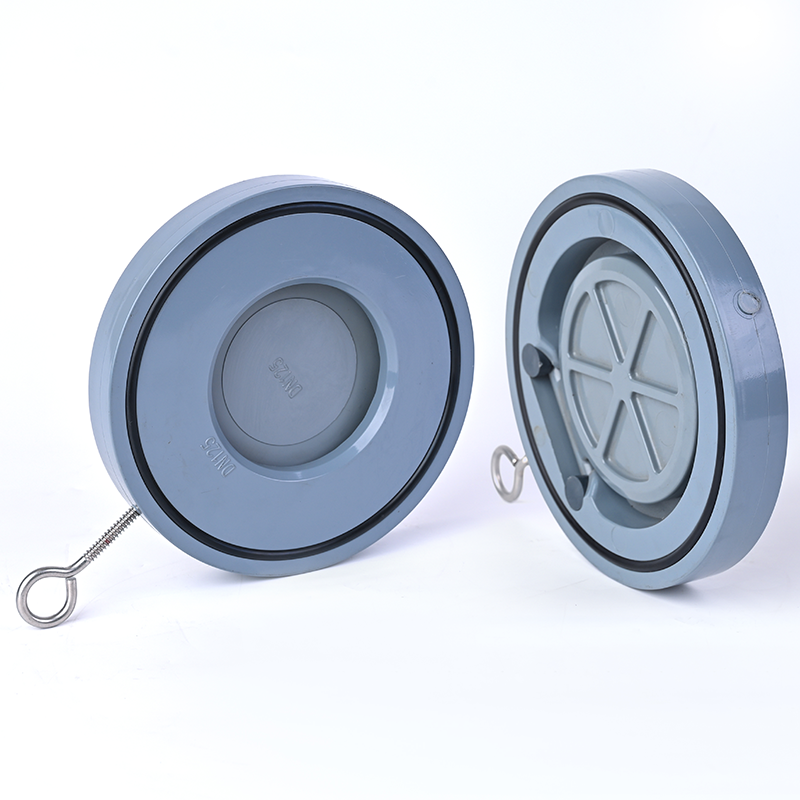

Katup Periksa Wafer CPVC ini (juga disebut katup periksa tipe wafer dan katup periksa ayun wafer) dirancang untuk perpipaan industri bertekanan rendah-menengah, dibuat dari CPVC bermutu tinggi untuk ketahanan kimia dan suhu yang unggul. Desain wafernya yang ringkas memungkinkan pemasangan yang hemat ruang dan mudah di antara flensa pipa, dengan mekanisme ayunan yang mulus memastikan aliran satu arah yang andal dan penyegelan anti bocor yang rapat. Tahan lama, perawatan rendah, ideal untuk transfer cairan korosif, pengolahan air, dan sistem pemrosesan industri.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | CPVC Wafer Check Valve DN100 DN300 4 inch | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | CPVC | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Grey | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN10(1.0Mpa) | |||
| Working temperature: | normal temperature | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Katup Periksa Wafer CPVC kami adalah solusi terbaik untuk sistem perpipaan skala besar yang mengutamakan ruang dan berat. Dirancang agar terpasang dengan aman di antara dua flensa, katup ini menawarkan profil yang ramping dan ringkas yang secara signifikan mengurangi keseluruhan jejak pemasangan Anda. Untuk proyek yang membutuhkan daya tahan bahan kimia maksimum, kami menawarkan katup periksa wafer CPVC dengan segel Viton, memastikan penutupan yang rapat bahkan ketika menangani asam agresif atau zat pengoksidasi.

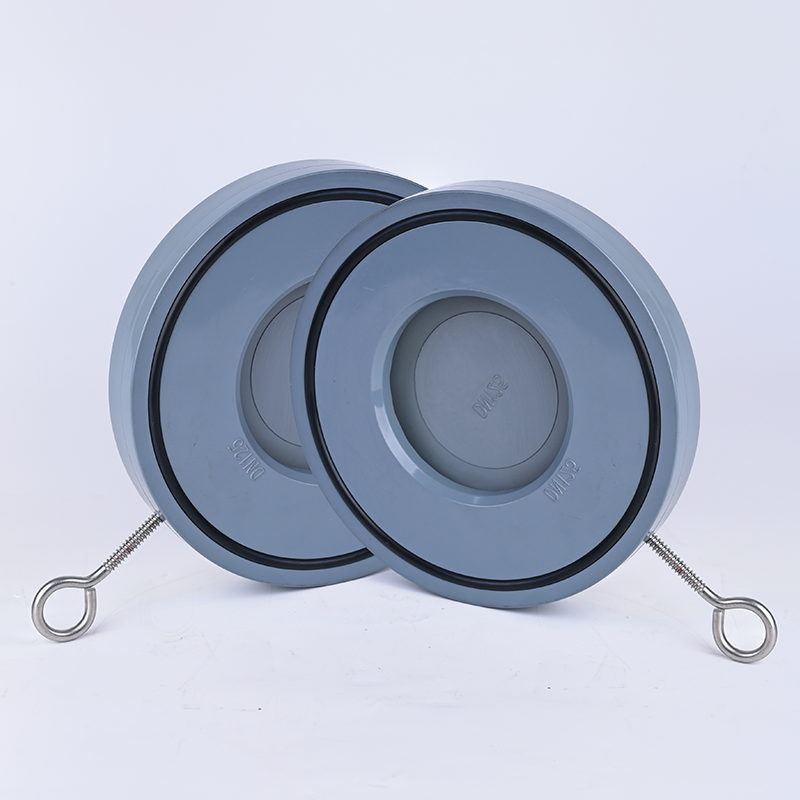

| CPVC Wafer Check Valve Parts&Material | ||
| No. | Parts | Materials |
| 1 | rings | stainless steel |
| 2 | Screw | CPVC |
| 3 | Body | CPVC |
| 4 | Disc | CPVC |
| 5 | InnerO-ring | EPDM,FPM |
| 6 | Outside O-ring | EPDM,FPM |
| CPVC Wafer Check Valve Dimensions Table | ||||||
| DN | d | D1 | P | L | (Mpa) working pressure |
(Mpa) Minimum back pressure |
| DN40 | 23 | 82 | 36 | 18 | 1.0 | 0.05 |
| DN50 | 27 | 108 | 44 | 21 | 1.0 | 0.05 |
| DN65 | 40 | 127 | 58 | 22 | 1.0 | 0.05 |
| DN80 | 54 | 142 | 70 | 23 | 1.0 | 0.05 |
| DN100 | 70 | 165 | 89 | 25 | 1.0 | 0.05 |
| DN125 | 92 | 192 | 115 | 28 | 1.0 | 0.05 |
| DN150 | 112 | 217 | 131 | 30 | 1.0 | 0.05 |
| DN200 | 150 | 270 | 179 | 34 | 0.6 | 0.05 |
| DN250 | 190 | 328 | 230 | 39 | 0.6 | 0.05 |
| DN300 | 216 | 378 | 260 | 44 | 0.6 | 0.05 |
