Katup Kupu-Kupu Turbo CPVC

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1 Piece/Pieces

Transportasi:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Warranty Period: 3 Years

Types Of: Butterfly Valves

Support Customization: Oem

Place Of Origin: China

Medium Temperature: Normal Temperature

Power: Hydraulic

Structure: Butterfly

Standar: DIN, JIS, ANSI

Tubuh Katup: CPVC, PVC-C

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

Menjual unit:

Piece/Pieces

Turbo Butterfly Valve CPVC kami adalah solusi kontrol aliran industri berkinerja tinggi, dirancang sebagai katup kupu-kupu konsentris presisi dan alternatif serbaguna untuk kombo katup kupu-kupu katup bola tradisional. Dilengkapi dengan desain katup kupu-kupu gaya wafer yang praktis untuk pemasangan pipa yang mudah, dengan konstruksi CPVC premium untuk ketahanan terhadap bahan kimia dan suhu yang unggul. Menghadirkan pengoperasian pegangan turbo yang mulus dan penyegelan yang rapat, perawatannya rendah untuk pemrosesan kimia bertekanan rendah-menengah dan sistem pengolahan air.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	Turbo Butterfly Valve CPVC
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	CPVC(PVC-C)
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm

	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN16(1.6Mpa)
	Working temperature:	-15 to 85Degree Celsius
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

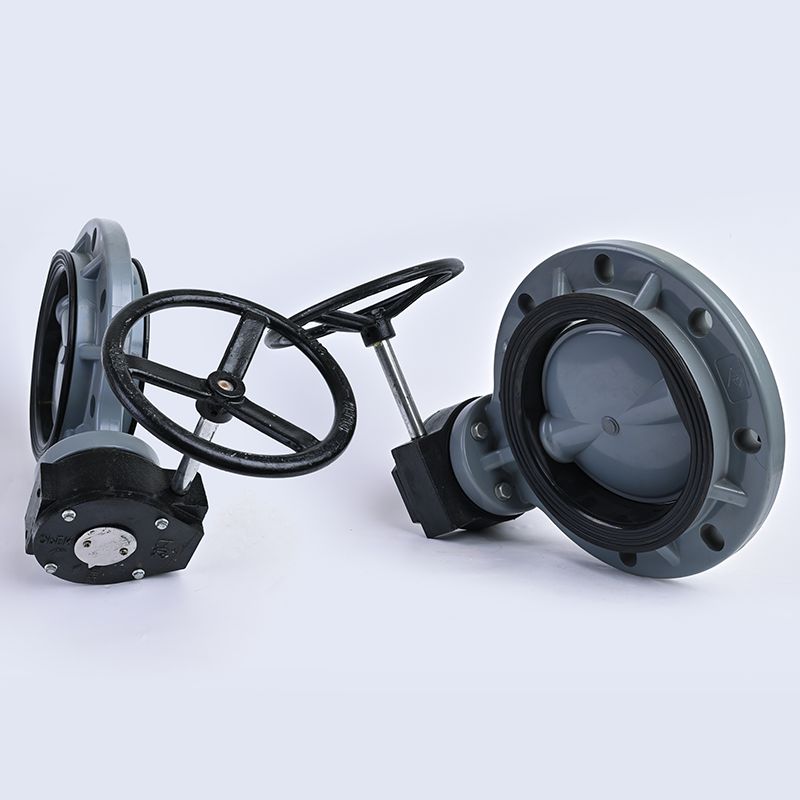

Katup Kupu-Kupu yang Dioperasikan dengan Gigi CPVC kami dirancang untuk keunggulan dalam lingkungan industri yang menuntut. Dirancang khusus untuk menangani cairan korosif dan aplikasi suhu tinggi, Katup Kupu-kupu CPVC Tipe Wafer dengan Gear Box ini menawarkan kontrol aliran yang presisi dan pengoperasian manual yang mudah, bahkan di bawah tekanan tinggi.

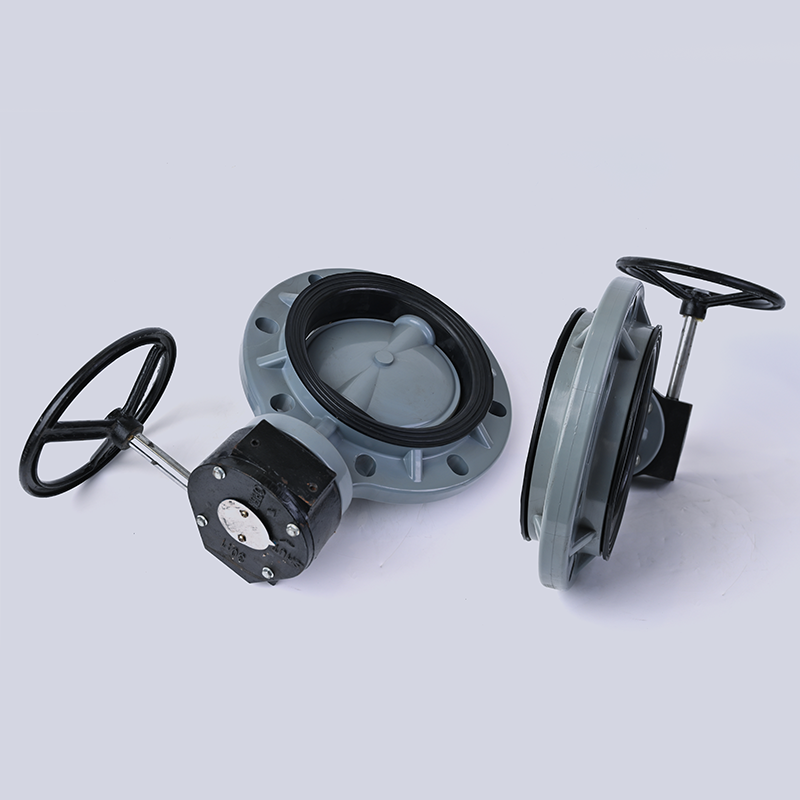

CPVC Butterfly Valve-Worm Gear Type Parts&Material
No.	Parts	Materials
1	Gear box	cast iron,aluminum alloy,plastic
2	Body	CPVC
3	Seat	EPDM,FPM
4	Stem	steel,stainless steel
5	Disc	CPVC
6	Disc O-ring	EPDM,FPM
7	Stud Bolt &Nut杆0	steel&plastic nuts,stainles steel
8	Stem O-ring	EPDM,FPM

CPVC DIN Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	GB/DIN	D1	L	GB/DIN	working pressure(Mpa)
125	131	210	255	62	8	0.6#
150	153	240	285	67	8	0.6#
200	205	295	340	85	8	0.6#
250	259	350	410	105	12	0.6
300	307	400	480	120	12	0.6
350	358	460	530	130	16	0.4
400	389	515	605	140	16	0.4
450	446	565	630	152	20	0.4
500	494	620	705	155	20	0.3
600	590	725	820	175	20	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀

CPVC JIS Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	JIS	D1	L	JIS	working pressure(Mpa)
125	131	210	255	62	8	0.6#
150	153	240	285	67	8	0.6#
200	205	290	340	85	12*	0.6#
250	259	355	410	105	12	0.6
300	307	400	480	120	16*	0.6
350	358	445	530	130	16	0.4
400	389	510	605	140	16	0.4
450	446	565	630	152	20	0.4
500	494	620	705	155	20	0.3
600	590	730	820	175	24*	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀

CPVC ANSI Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	ANSI	D1	L	ANSI	working pressure(Mpa)
125	131	216	255	62	8	0.6#
150	153	241	285	67	8	0.6#
200	205	298	340	85	8	0.6#
250	259	362	410	105	12	0.6
300	307	432	480	120	12	0.6
350	358	476	530	130	12*	0.4
400	389	540	605	140	16	0.4
450	446	578	630	152	16*	0.4
500	494	635	705	155	20	0.3
600	590	749	820	175	20	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀
