Katup Bola Platform Tinggi CPVC

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1 Piece/Pieces

Transportasi:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Masa Garansi: 3 tahun

Jenis Dari: Katup bola

Mendukung Kustomisasi: OEM

Tempat Asal: Cina

Aplikasi: Umum

Suhu Sedang: Suhu normal

Kekuasaan: Hidrolik

Media Aliran: Air, Minyak, AC id

Struktur: Bola

Merek: HY or Oem

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

Menjual unit:

Piece/Pieces

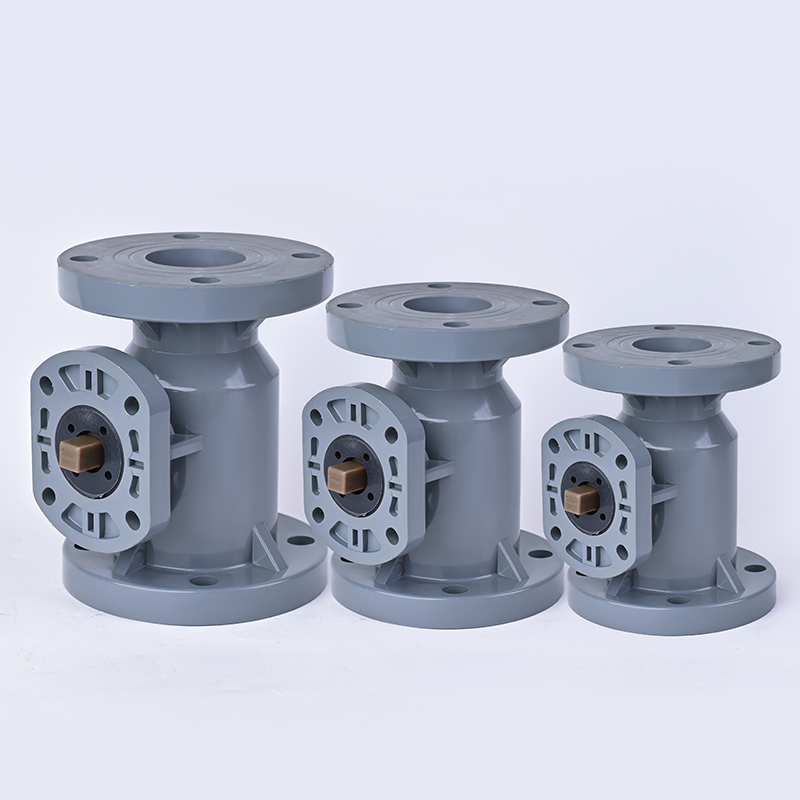

Katup Bola Platform Tinggi CPVC premium kami adalah Katup Bola Platform Tinggi berkinerja tinggi yang dirancang untuk otomasi industri, tersedia dalam spesifikasi 3 katup bola dan 3 katup bola 4 yang praktis untuk memenuhi beragam kebutuhan perpipaan. Dibuat dari CPVC yang tahan bahan kimia dan korosi, ia dilengkapi platform tinggi untuk integrasi aktuator yang mulus, penyegelan presisi untuk kinerja anti bocor, dan bentuk kokoh untuk daya tahan lama, ideal untuk sistem fluida bertekanan rendah-menengah industri dan pemrosesan kimia.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	CPVC High Platform Ball Valve
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	CPVC
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Cream
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Dalam dunia pemrosesan bahan kimia yang penuh tuntutan, keandalan peralatan tidak dapat ditawar lagi. Seri Katup Bola Pemasangan Langsung CPVC kami dirancang khusus untuk kontrol cairan korosif, menawarkan alternatif yang kuat terhadap katup logam yang tahan terhadap oksidasi dan erosi asam.

CPVC DIN Flanged Ball Valve For Automation Dimensions Table
DN	D1	D	L	b	D	φ	(Mpa)working pressure			I	J	M	N
DN	D1	DIN	L	b	HG/DIN	HG/DIN	FRPP/PPH	UPVC/CPVC	PVDF	I	J	M	N
15	95	65	100	15	4	14	1.0	1.6	1.6	70	/	11	11
20	105	75	120	17	4	14	1.0	1.6	1.6	70	/	11	11
25	115	85	140	17	4	14	1.0	1.6	1.6	70	/	11/14*	11
32	135	100	160	18	4	18	1.0	1.6	1.6	70	/	11/14*	11
40	145	110	165	18	4	18	1.0	1.0	1.6	70	/	14/17*	17
50	160	125	180	20	4	18	1.0	1.0	1.6	70	/	14/17*	17
65	180	145	220	22	4	18	1.0	1.0	1.0	70	102	14/17	21
80	195	160	250	25	8	18	1.0	1.0	1.0	70	102	14/17	21
100	215	180	280	25	8	18	1.0	1.0	1.0	70	102	17/22	24
125	245	210	325	30	8	18	0.6	0.6	0.6	125	/	22/27*
150	280	240	365	30	8	22	0.6	0.6	0.6	125	/	22/27*
200	335	295	405	35	8	22	0.3	0.3	0.3	125	/	22/27*
250	400	350	500	38	12	22	0.3	0.3	0.3	125	/	22/27*
300	455	400	600	40	12	22	0.3	0.3	0.3
*Indicates that the connection size of the valve stem is square,which can be added into 8 corners

CPVC JIS Flanged Ball Valve For Automation Dimensions Table
DN	D1	D	L	b	D	φ	(Mpa)working pressure			I	J	M	N
DN	D1	JIS	L	b	JIS	JIS	FRPP/PPH	UPVC/CPVC	PVDF	I	J	M	N
15	95	70	100	15	4	15	1.0	1.6	1.6	70	/	11	11
20	105	75	120	17	4	15	1.0	1.6	1.6	70	/	11	11
25	115	90	140	17	4	15	1.0	1.6	1.6	70	/	11/14*	11
32	135	100	160	18	4	19	1.0	1.6	1.6	70	/	11/14*	11
40	145	105	165	18	4	19	1.0	1.0	1.6	70	/	14/17*	17
50	160	120	180	20	4	19	1.0	1.0	1.6	70	/	14/17*	17
65	180	140	220	22	4	19	1.0	1.0	1.0	70	102	14/17	21
80	195	150	250	25	8	19	1.0	1.0	1.0	70	102	14/17	21
100	215	175	280	25	8	19	1.0	1.0	1.0	70	102	17/22	24
125	245	210	325	30	8	19	0.6	0.6	0.6	125	/	22/27*
150	280	240	365	30	8	23	0.6	0.6	0.6	125	/	22/27*
200	335	290	405	35	12*	23	0.3	0.3	0.3	125	/	22/27*
250	400	355	500	38	12	25	0.3	0.3	0.3	125	/	22/27*
300	455	400	600	40	16*	25	0.3	0.3	0.3
*Indicates that the connection size of the valve stem is square,which can be added into 8 corners

CPVC ANSI Flanged Ball Valve For Automation Dimensions Table
DN	D1	D	L	b	D	φ	(Mpa)working pressure			I	J	M	N
DN	D1	ANSI	L	b	ANSI	ANSI	FRPP/PPH	UPVC/CPVC	PVDF	I	J	M	N
15	95	60	100	15	4	16	1.0	1.6	1.6	70	/	11	11
20	105	70	120	17	4	16	1.0	1.6	1.6	70	/	11	11
25	115	79	140	17	4	16	1.0	1.6	1.6	70	/	11/14*	11
32	135	89	160	18	4	16	1.0	1.6	1.6	70	/	11/14*	11
40	145	98	165	18	4	16	1.0	1.0	1.6	70	/	14/17*	17
50	160	121	180	20	4	19	1.0	1.0	1.6	70	/	14/17*	17
65	180	140	220	22	4	19	1.0	1.0	1.0	70	102	14/17	21
80	195	152	250	25	4*	19	1.0	1.0	1.0	70	102	14/17	21
100	215	190	280	25	8	19	1.0	1.0	1.0	70	102	17/22	24
125	245	216	325	30	8	22	0.6	0.6	0.6	125	/	22/27*
150	280	241	365	30	8	22	0.6	0.6	0.6	125	/	22/27*
200	335	298	405	35	8	22	0.3	0.3	0.3	125	/	22/27*
250	400	362	500	38	12	26	0.3	0.3	0.3	125	/	22/27*
300	455	432	600	40	12	26	0.3	0.3	0.3
*Indicates that the connection size of the valve stem is square,which can be added into 8 corners
