Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1 Piece/Pieces
Transportasi:Ocean,Land,Air
$0.1-1 /Piece/Pieces
Merek: HY atau OEM
Layanan Garansi: 3 tahun
Tempat Asal: Cina
Kind: Thermoplastics Pipes
Water Absorption: ＜0.01%
Persentase Kontraksi: 1,0%~ 2,5%
Tensile Strength: （30~40）MPa
Color: cream
Pressure: 1.6Mpa
Processing Service: Moulding
Suhu: -15 hingga 55 Derajat Celcius
Material: PPH
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | Reliable Reducing Tee for PPH Pipe Systems | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PPH | |||
| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | Cream | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||

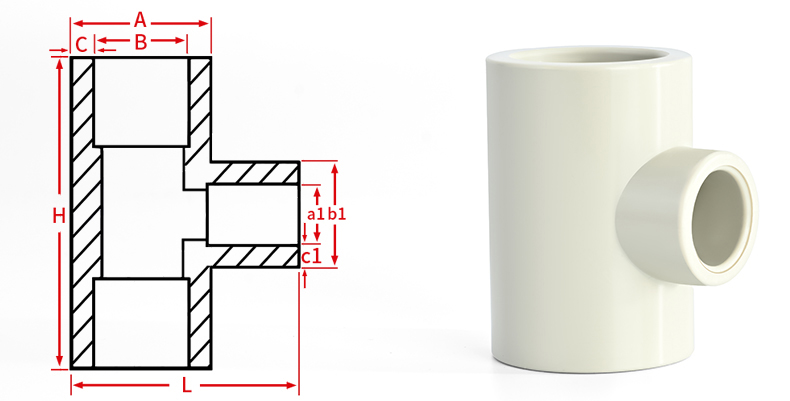

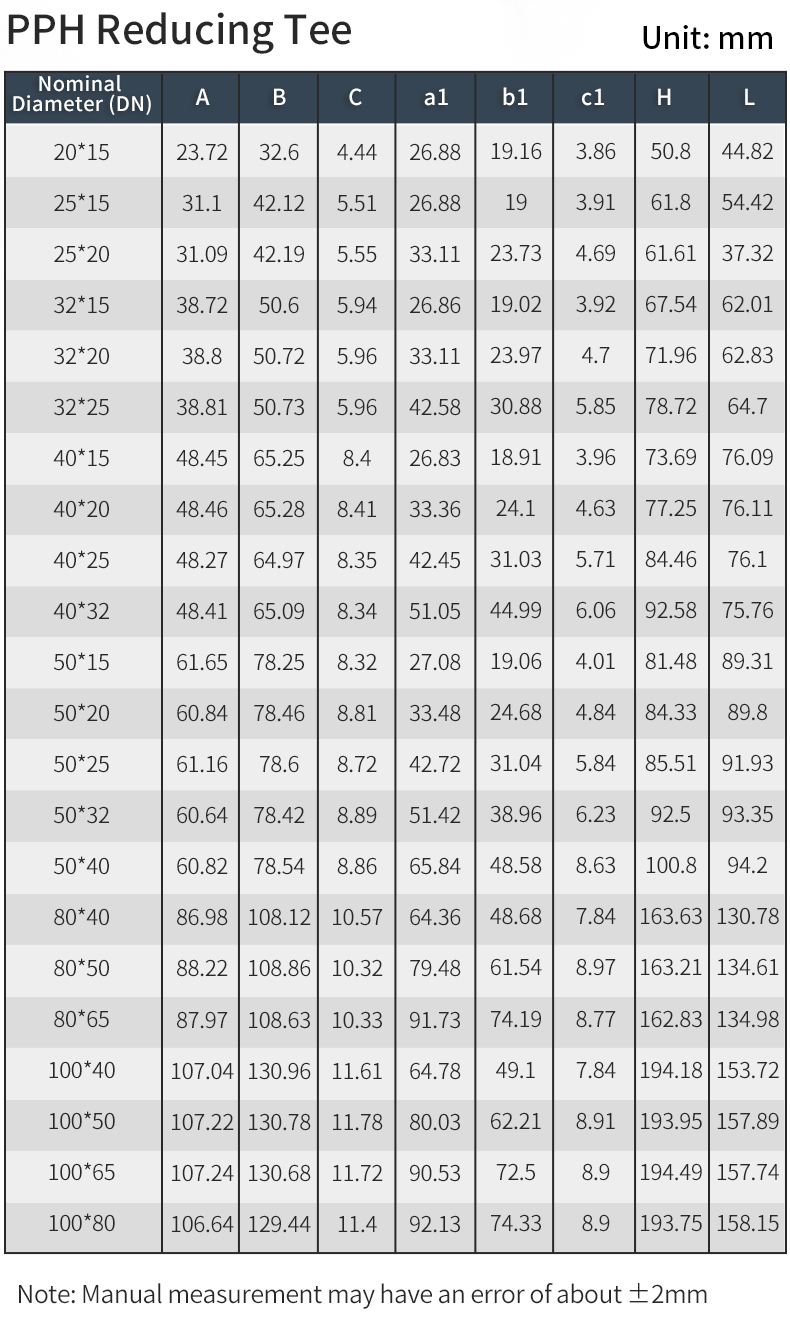

Perlengkapan ini berfungsi sebagai Tee PPH yang ideal untuk aplikasi Cabang Instrumentasi , memungkinkan integrasi sensor, pengukur, dan jalur takaran sekunder ke dalam header proses utama. Untuk membantu insinyur dan manajer proyek dalam tahap desain mereka, kami menyediakan bagan dimensi tee pereduksi PPH yang komprehensif di situs web kami, yang merinci berbagai kombinasi ukuran metrik untuk memastikan kesesuaian sempurna untuk setiap titik transisi di sistem Anda.
