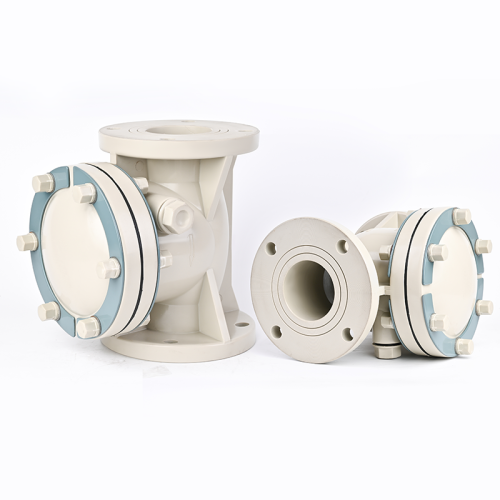

Katup Periksa Putar PPH

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1

Transportasi:Ocean,Land,Air

$0.1-1 /

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Pressure: Low Pressure

Bentuk Penyegelan: Penyegelan diri

Material: PP, PPH

Aplikasi: Industrial Usage

Standar: DIN

Medium Temperature: Normal Temperature

Warranty Period: 3 Years

Power: Hydraulic

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

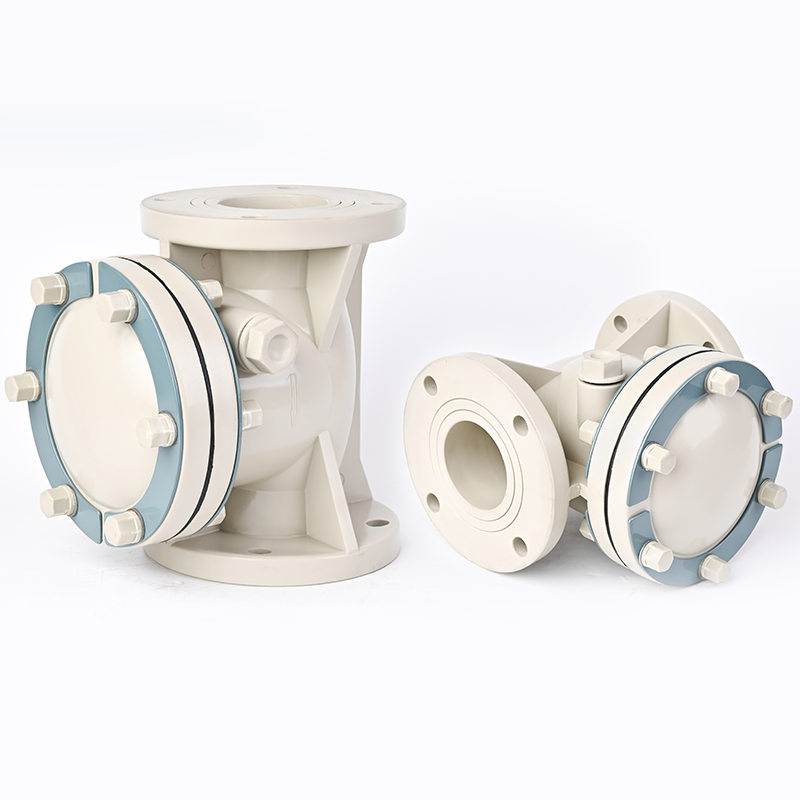

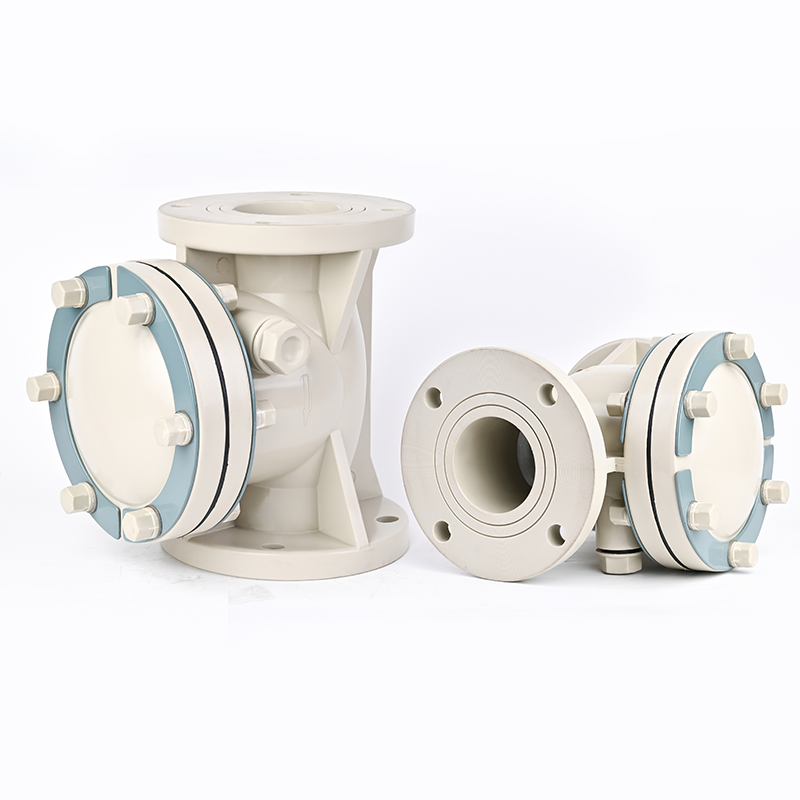

Rotary Check Valve PPH ini adalah katup periksa ayun plastik berkinerja tinggi, dirancang dengan fungsi inti katup periksa tipe ayun dan kompatibel dengan pengaturan pipa katup ayun bergelang. Dibuat dari PPH premium, produk ini memberikan ketahanan kimia dan suhu yang luar biasa, dilengkapi mekanisme ayunan putar untuk aliran satu arah yang lancar dan pencegahan aliran balik yang andal. Ringkas, tahan lama, dan mudah dipasang, ideal untuk transfer cairan korosif dan sistem perpipaan industri bertekanan rendah-menengah.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	Rotary Check Valve PPH
Connect Type:	Cement/Glue/socket
Brand:	HUIYA or OEM
Material:	PPH
Specifications:	Size(dimensions):	20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
		DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
	Color:	LightGrey(Default), Grey, Blue,white
	Standard:	ISO4422, ISO1452, GBT10002，DIN
	Pressure rating :	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Rotary Check Valve PPH kami adalah pilihan non-return teratas untuk sistem korosif industri! PPH premium memberikan ketahanan terhadap bahan kimia & suhu yang tidak ada duanya, dengan mekanisme ayunan putar yang halus untuk aliran satu arah yang rapat dan penyegelan anti bocor. Tahan lama, mudah dipasang, rendah perawatan—sempurna untuk transfer bahan kimia dan perpipaan industri bertekanan rendah-menengah.

PPH Swing Check Valve Parts&Material
No.	Parts	Materials
1	Bonnet	PPH
2	Board	steel,stainless steel
3	Stud Bolt &Nut	steel,stainless steel
4	Swing Arms	PPH
5	Nut	PPH
6	Disc Sealing	EPDM,FPM,PTFE
7	Disc Holder	PPH
8	Disc	PPH
9	Body	PPH
10	Shoft	PPH
11	Bonnet Cushion	EPDM,FPM,PTFE

PPH DIN Swing Check Valve Dimensions Table
DN	D(mm)	D1	L	h	n	φ(mm)	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
DN	DIN	D1	L	h	HG/DIN	HG/DIN	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
25	85	125	160	16	4	14	1.0	0.05
32	100	145	180	16	4	18	1.0	0.06
40	110	145	180	16	4	18	1.0	0.06
50	125	160	200	18	4	18	1.0	0.06
65	145	180	240	22	4	18	1.0	0.08
80	160	195	260	22	8	18	0.6	0.08
100	180	215	300	22	8	18	0.6	0.08
125	210	250	350	28	8	18	0.6	0.1
150	240	280	405	30	8	22	0.6	0.1
200	295	330	500	34	8	22	0.3	0.1
250	350	395	600	37	12	22	0.3	0.1
300	400	450	600	38	12	22	0.3	0.1

PPH JIS Swing Check Valve Dimensions Table
DN	D(mm)	D1	L	h	n	φ(mm)	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
DN	JIS	D1	L	h	JIS	JIS	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
25	90	125	160	16	4	15	1.0	0.05
32	100	145	180	16	4	19	1.0	0.06
40	105	145	180	16	4	19	1.0	0.06
50	120	160	200	18	4	19	1.0	0.06
65	140	180	240	22	4	19	1.0	0.08
80	150	195	260	22	8	19	0.6	0.08
100	175	215	300	22	8	19	0.6	0.08
125	210	250	350	28	8	19	0.6	0.1
150	240	280	405	30	8	23	0.6	0.1
200	290	330	500	34	12*	23	0.3	0.1
250	355	395	600	37	12	25	0.3	0.1
300	400	450	600	38	16*	25	0.3	0.1

PPH ANSI Swing Check Valve Dimensions Table
DN	D(mm)	D1	L	h	n	φ(mm)	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
DN	ANSI	D1	L	h	ANSI	ANSI	(Mpa) workingpressure	(Mpa) Minimum Back Pressure
25	79	125	160	16	4	16	1.0	0.05
32	89	145	180	16	4	16	1.0	0.06
40	98	145	180	16	4	16	1.0	0.06
50	121	160	200	18	4	19	1.0	0.06
65	140	180	240	22	4	19	1.0	0.08
80	152	195	260	22	4*	19	0.6	0.08
100	190	215	300	22	8	19	0.6	0.08
125	216	250	350	28	8	22	0.6	0.1
150	241	280	405	30	8	22	0.6	0.1
200	298	330	500	34	8	22	0.3	0.1
250	362	395	600	37	12	26	0.3	0.1
300	432	450	600	38	12	26	0.3	0.1
