Katup Kupu-kupu Turbo PPH PN10

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1 Piece/Pieces

Transportasi:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Merek: HY atau OEM

Warranty Period: 3 Years

Types Of: Butterfly Valves

Support Customization: Oem

Place Of Origin: China

Aplikasi: General

Medium Temperature: Normal Temperature

Power: Hydraulic

Structure: Butterfly

Material Of Seal: Soft Sealed

Tubuh Katup: PP, FRPP, PP-GF, PPH

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

Menjual unit:

Piece/Pieces

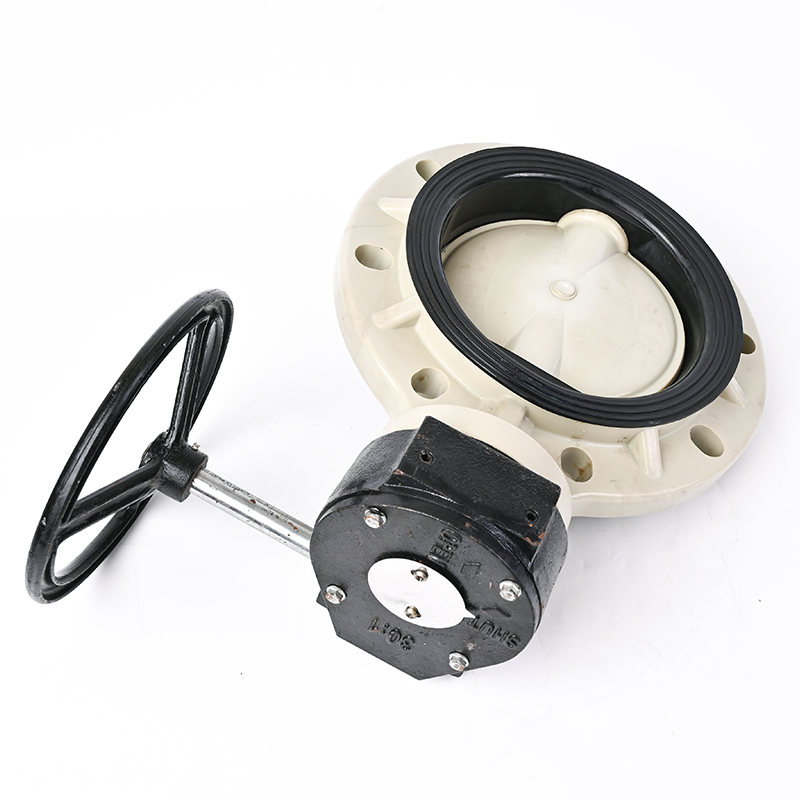

Katup Kupu-kupu Turbo PPH kami adalah solusi kontrol aliran industri berkinerja tinggi, katup kupu-kupu turbo premium yang dibuat dari PPH tahan lama dan tersedia dalam ukuran katup kupu-kupu 12 inci dan katup kupu-kupu 8 inci yang praktis. Dilengkapi dengan pegangan turbo yang halus untuk pengoperasian seperempat putaran yang mudah, penyegelan anti bocor yang rapat, dan ketahanan terhadap bahan kimia yang unggul. Ringan, mudah dipasang, dan perawatannya rendah, ideal untuk transfer bahan kimia bertekanan rendah-menengah, pengolahan air, dan sistem perpipaan industri.

HuiYa PVC fittings series
DIN	ANSI	JIS
PVC PN10	PVC SCH40
PVC PN16	PVC SCH80

Key Word:	PPH Turbo Butterfly Valve PN10
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PPH
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Cream
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN10(1.0Mpa)
	Working temperature:	normal temperature
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.

Sebagai produsen katup kupu-kupu plastik worm gear profesional, kami mengkhususkan diri dalam menyediakan solusi kontrol aliran untuk lingkungan industri yang paling menuntut. Katup Kupu-Kupu Worm Gear PPH andalan kami dirancang untuk keunggulan, menggabungkan ketahanan kimia yang unggul dari bahan Beta-PPH dengan kontrol presisi dari kotak roda gigi tugas berat.

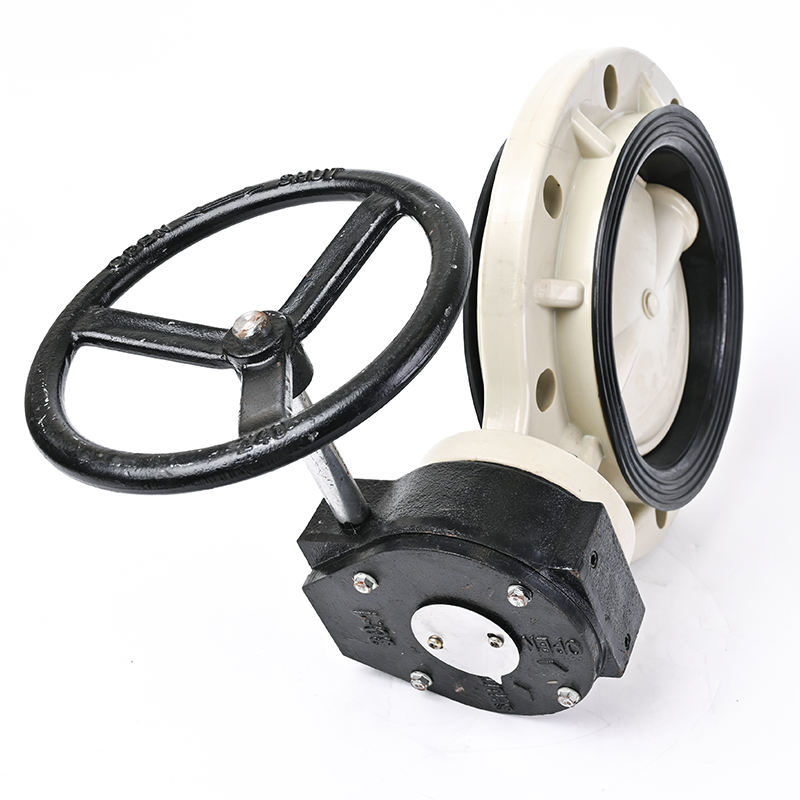

PPH Butterfly Valve-Worm Gear Type Parts&Material
No.	Parts	Materials
1	Gear box	cast iron,aluminum alloy,plastic
2	Body	PPH
3	Seat	EPDM,FPM
4	Stem	steel,stainless steel
5	Disc	PPH
6	Disc O-ring	EPDM,FPM
7	Stud Bolt &Nut杆0	steel&plastic nuts,stainles steel
8	Stem O-ring	EPDM,FPM

PPH DIN Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	GB/DIN	D1	L	GB/DIN	working pressure(Mpa)
125	131	210	255	62	8	0.6#
150	153	240	285	67	8	0.6#
200	205	295	340	85	8	0.6#
250	259	350	410	105	12	0.6
300	307	400	480	120	12	0.6
350	358	460	530	130	16	0.4
400	389	515	605	140	16	0.4
450	446	565	630	152	20	0.4
500	494	620	705	155	20	0.3
600	590	725	820	175	20	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀

PPH JIS Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	JIS	D1	L	JIS	working pressure(Mpa)
125	131	210	255	62	8	0.6#
150	153	240	285	67	8	0.6#
200	205	290	340	85	12*	0.6#
250	259	355	410	105	12	0.6
300	307	400	480	120	16*	0.6
350	358	445	530	130	16	0.4
400	389	510	605	140	16	0.4
450	446	565	630	152	20	0.4
500	494	620	705	155	20	0.3
600	590	730	820	175	24*	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀

PPH ANSI Butterfly Valve-Worm Gear Type Dimensions Table
DN	d	D	D1	L	n	working pressure(Mpa)
DN	d	ANSI	D1	L	ANSI	working pressure(Mpa)
125	131	216	255	62	8	0.6#
150	153	241	285	67	8	0.6#
200	205	298	340	85	8	0.6#
250	259	362	410	105	12	0.6
300	307	432	480	120	12	0.6
350	358	476	530	130	12*	0.4
400	389	540	605	140	16	0.4
450	446	578	630	152	16*	0.4
500	494	635	705	155	20	0.3
600	590	749	820	175	20	0.3
#号标注的规格，可定制1.0Mpa 工作压力的蝶阀
