Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal
Inkoterm:FOB,CFR,CIF
Min. Memesan:1
Transportasi:Ocean,Land,Air
$0.1-1 /
Merek: HY atau OEM
Material: PVC
Baik: PIPA TERMOPLASTIK
Water Absorption: ＜0.01%
Contraction Percentage: 1.0%~2.5%
Kekuatan Tarik: （30 ~ 40） MPa
Pressure: 1.6Mpa
Tempat Asal: Cina
Processing Service: Moulding
Merek: HY or Oem
Temperature: -15 to 55 Degree Celsius
Transportasi: Ocean,Land,Air
Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal
Inkoterm: FOB,CFR,CIF
Siku PVC Bening 90 Derajat kami yang berperforma tinggi, menampilkan ukuran praktis seperti siku pvc 90 derajat 2 inci dan siku 3 pvc 90 derajat, merupakan kunci pas untuk belokan tajam 90° dalam sistem pipa transparan. Terbuat dari PVC sebening kristal premium, memungkinkan inspeksi visual real-time terhadap aliran fluida dan kekencangan sambungan sekaligus memastikan transisi aliran yang mulus dan resistansi rendah. Tahan korosi, tahan tekanan, dan kompatibel dengan pipa PVC standar, ringan, mudah dipasang, dan ideal untuk pengaturan laboratorium, saluran akuarium, dan proyek pipa perumahan yang memerlukan penyesuaian sudut yang andal.
| HuiYa PVC fittings series | ||
| DIN | ANSI | JIS |
| PVC PN10 | PVC SCH40 | |
| PVC PN16 | PVC SCH80 | |
| Key Word: | Clear PVC Elbow 90 Degree | |||
| Connect Type: | Cement-Glue-Socket | |||
| Brand: | HUIYA or OEM | |||
| Material: | PVC(PVC-U) | |||

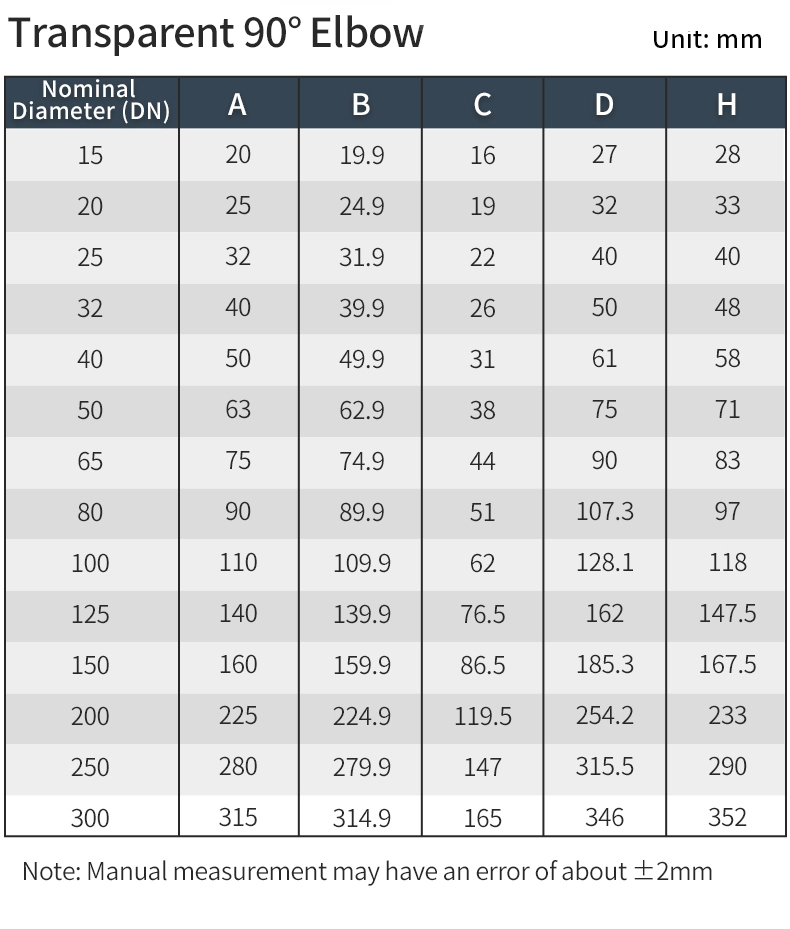

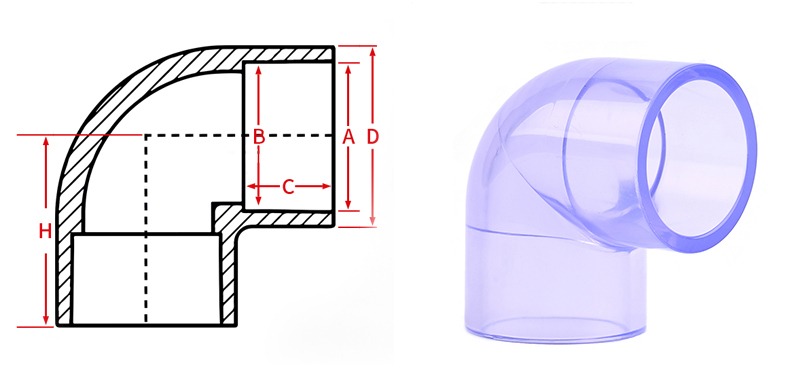

| Specifications: | Size(dimensions): | DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400 | ||
| 20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm | ||||
| Color: | transparent | |||
| Standard: | ISO , ISO4422, , DIN8063,GB/T 4219.2 | |||
| Working pressure: | PN16(1.6Mpa) | |||
| Working temperature: | -15 to 55 Degree Celsius | |||
| Production Process: | Mold Injected | |||
| Packing: | Cartons | |||
| Advantage: | 1.100% virgin PVC material | |||
| 2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body | ||||
| 3.Strictly produced according to ISO standard | ||||
| 4.Long lifetime | ||||
| 5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance | ||||
| Application: | Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields | |||
| HS Code: | 391740 | |||
| Certificate: | SGS | |||
| Brief Introduction: | HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves,Upvc Pipe Fittings And Valves,Pph Pipe Fittings And Valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc. | |||
| We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard. | ||||
Sebagai Produsen Siku 90 Derajat UPVC Bening khusus, kami menyediakan solusi perpipaan transparan berkinerja tinggi yang menggabungkan integritas struktural dengan visibilitas sejernih kristal. Siku 90 Derajat UPVC Bening kami adalah pilihan sempurna untuk sistem yang memerlukan pemantauan terus-menerus, berfungsi sebagai Siku Transparan yang penting untuk Pengamatan Dosis Bahan Kimia . Hal ini memungkinkan operator memverifikasi aliran, mengidentifikasi gelembung udara, dan mendeteksi kotoran secara real-time tanpa mengganggu proses.
