UPVC 45 Derajat Siku DIN PN10

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1 Piece/Pieces

Transportasi:Ocean,Land,Air

$0.1-1 /Piece/Pieces

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket
Other information

Atribut Produk

Merek: HY atau OEM

Layanan Garansi: 3 tahun

Tempat Asal: Cina

Connection: Welding

Warna: Abu-abu Muda

Pressure: 1.6Mpa

Merek: HY or Oem

Bahan: UPVC

Temperature: -15 to 55 Degree Celsius

Hardness: Hard Tube

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket

Menjual unit:

Piece/Pieces

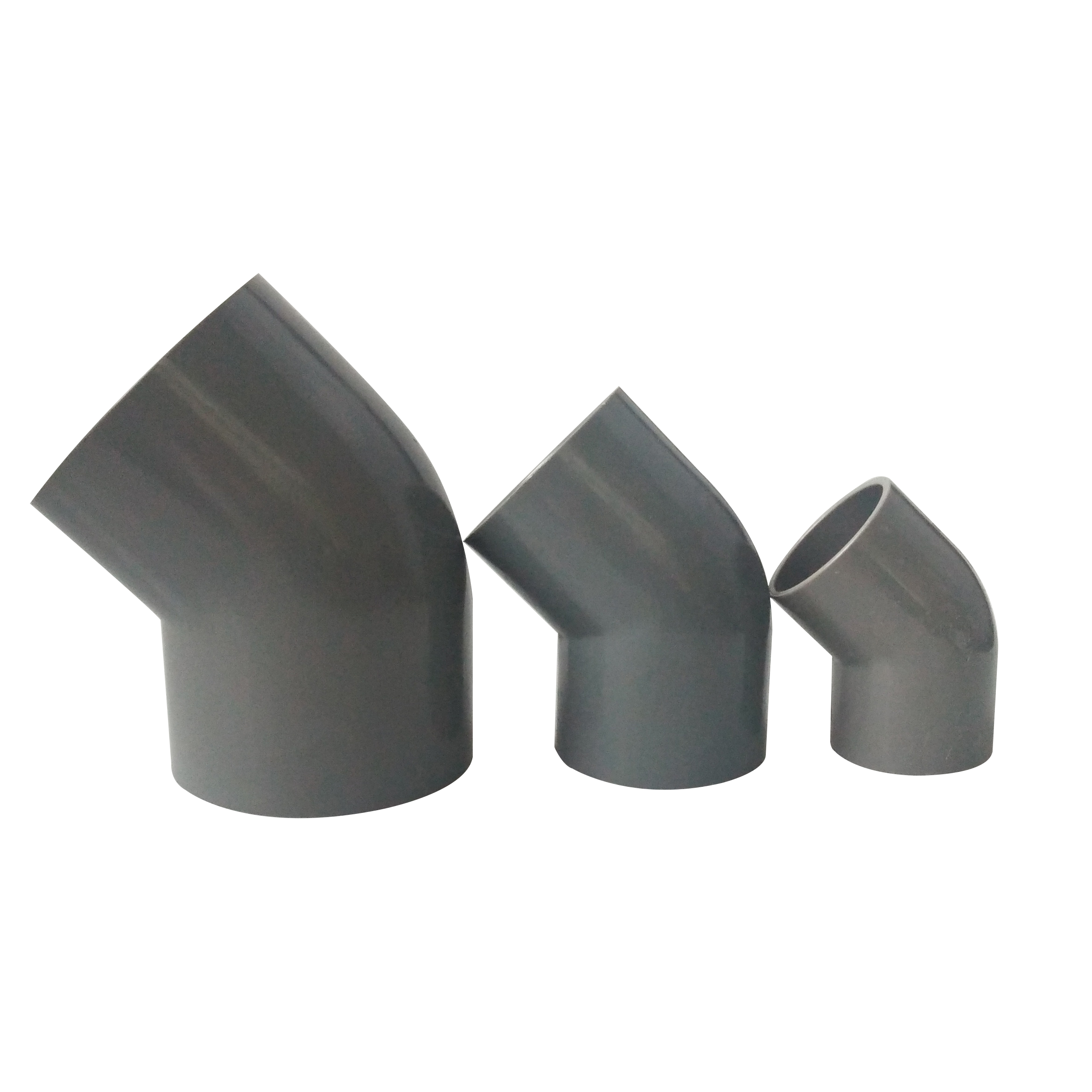

UPVC 45 Derajat Siku DIN PN10 Berkualitas Tinggi adalah fitting pipa kualitas premium yang dirancang untuk penggunaan yang andal dan efisien dalam sistem distribusi air. Produk ini mematuhi standar ketat yang ditetapkan oleh DIN PN10, memastikan ketahanan, kinerja, dan kompatibilitas dengan berbagai aplikasi perpipaan.

Key Word:	UPVC 45 Degree Elbow DIN PN10
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PVC(PVC-U)

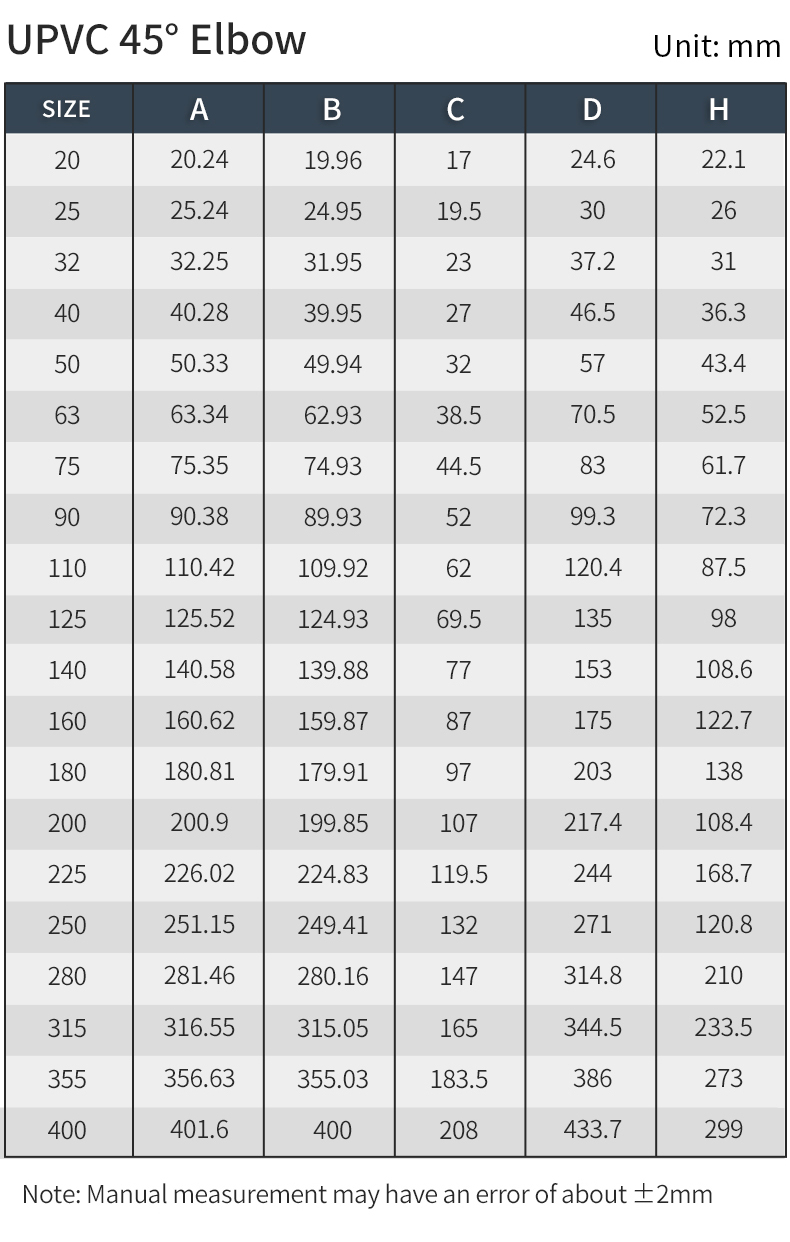

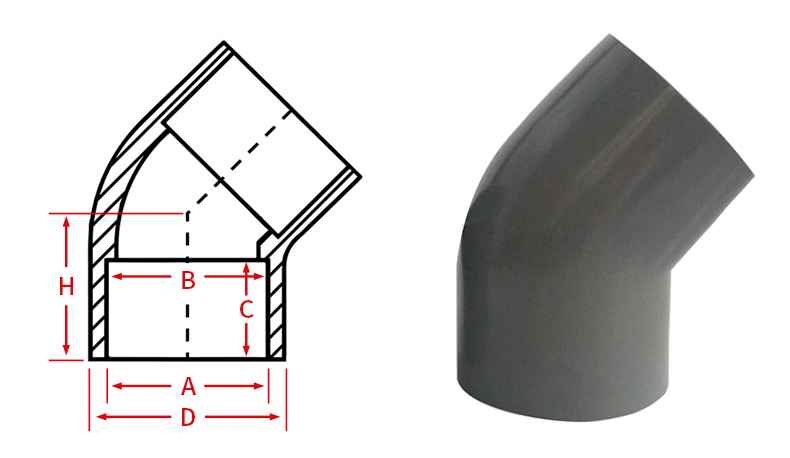

Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Grey
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN16(1.6Mpa)
	Working temperature:	-15 to 55 Degree Celsius
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.
