Description: Kopling Betina PVC Bening adalah konektor salah satu ujungnya dengan soket dan ujung lainnya dari ulir betina, ujung

Kopling Wanita PVC Bening PN16

Jenis pembayaran:L/C,T/T,D/P,D/A,Paypal

Inkoterm:FOB,CFR,CIF

Min. Memesan:1

Transportasi:Ocean,Land,Air

$0.1-1 /

Atribut Produk
Kemampuan Pasokan & Informasi Tambahan
& pengiriman paket

Atribut Produk

Tempat Asal: Cina

Material: Pvc

Processing Service: Moulding

Color: Transparent

Baik: PIPA TERMOPLASTIK

Water Absorption: ＜0.01%

Contraction Percentage: 1.0%~2.5%

Temperature: 0 To 70 Degree Celsius

Kekuatan Tarik: （30 ~ 40） MPa

Pressure: 1.6Mpa

Merek: HY or Oem

Kemampuan Pasokan & Informasi Tambahan

Transportasi: Ocean,Land,Air

Jenis pembayaran: L/C,T/T,D/P,D/A,Paypal

Inkoterm: FOB,CFR,CIF

& pengiriman paket



bersihkan kabel bagian dalam secara langsung



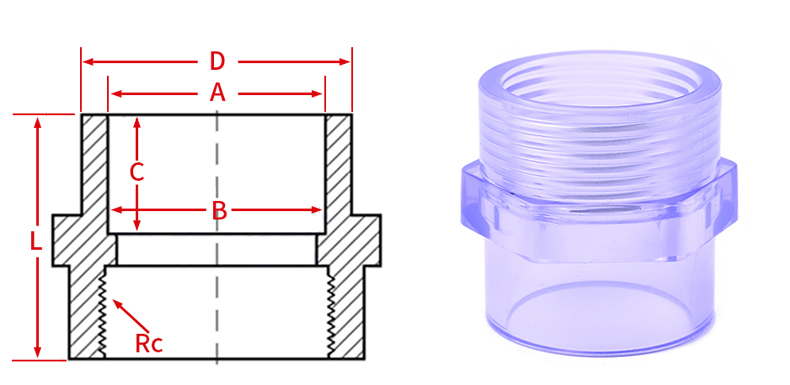

Kopling Betina PVC Bening adalah konektor salah satu ujungnya dengan soket dan ujung lainnya dari ulir betina, ujung soket Pemasangan Pipa UPVC Bening PN16 dibuat dengan standar DIN, dan ujung sekrup Pemasangan Pipa PVC Bening SCH80 dengan standar NPT. tujuan utama penggunaan coupler wanita Fitting PVC adalah menghubungkan katup, instrumen, peralatan, dan aksesori lainnya ke sistem pipa. .

Key Word:	Clear PVC Female Coupling PN16
Connect Type:	Cement-Glue-Socket
Brand:	HUIYA or OEM
Material:	PVC(PVC-U)
Specifications:	Size(dimensions):	DN15-20-25-32-40-50-65-80-100-125-150-200-250-300-350-400
		20-25-32-40-50-63-75-90-110-125-140-160-200-225-280-315-355-400mm
	Color:	Transparent
	Standard:	ISO , ISO4422, , DIN8063,GB/T 4219.2
	Working pressure:	PN16(1.6Mpa)
	Working temperature:	0 To 70 Degree Celsius
	Production Process:	Mold Injected
	Packing:	Cartons
Advantage:	1.100% virgin PVC material
	2.Environmentally friendly material, 100% no lead, zinc and other metals, water quality unaffected,harmless to the body
	3.Strictly produced according to ISO standard
	4.Long lifetime
	5.The pressure resistance reaches 1.6 MPa, Good chemicals and drugs resistance
Application:	Connected with PVC-U pipes for portable water supply，also can be used for corrosive medium transportation in chemical industry and other fields
HS Code:	391740
Certificate:	SGS
Brief Introduction:	HuiYa Plastic Co., Ltd is a professional supplier of UPVC-CPVC-PE-PPR Pipes, pipe fittings, valves. Plastic piping systems such as pipes, fittings and valves is widely used in water supply, chemical industry, water treatment, environmental protection, pharmaceutical area etc.
	We insist in the principal of Quality First, Clients First". Your satisfaction is our eternal pursuit. With high-class raw material, strict quality control in both the workshop and laboratory with various professional testing equipment, HuiYa Plastic ensures that every single product meets the corresponding inspection standard.
